content="14/09/2022″/> Analogue thickness gauge K100, 30/0.1/100 mm

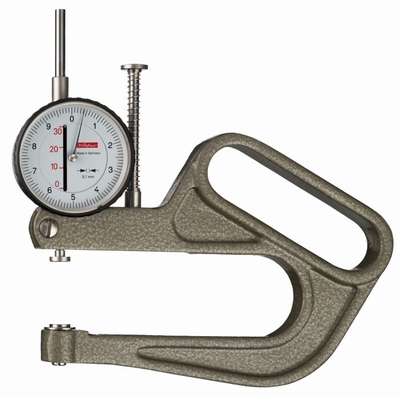

Analogue thickness gauge K100, 30/0.1/100 mm

Analogue thickness gauge K100, 30/0.1/100 mm

Analogue thickness gauge K100, 30/0.1/100 mm

Analogue thickness gauge K100, 30/0.1/100 mm

€ 147.00 *Prices are exclusive of VAT

Article code: 20005

range: 30 mm
range per revolution: 10 mm
reading: 0,1 mm
depth of the jaw: 100 mm
contact point: flat Ø10 mm
bezel: Ø58 mm
measurement is done by closing the contact points => variable pressure, not suitable for soft material
contact points normally open by a spring
rotating dial with ring black steel and unbreakable glass
accuracy: according to manufacturing standard, 50 µm
weight: 600 g
delivered in cardboard box

Options & accessories

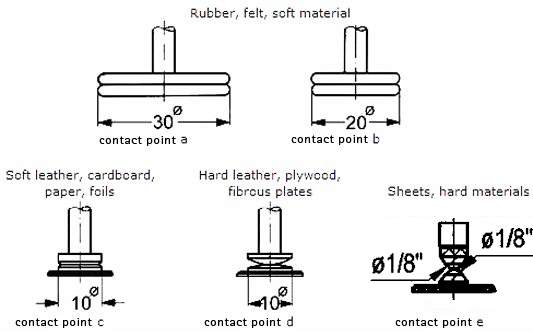

contact points: flat Ø30 mm (a) - free option, to be specified when ordering
contact points: flat Ø20 mm (b) - free option, to be specified when ordering
contact points: spherical Ø10 mm (d) - free option, to be specified when ordering
contact points: ball Ø1/8" mm (e) - free option, to be specified when ordering
stand to convert the thickness gauge in a table model

On order

Contact points

Quantity

Option & accessories

Stand 2.1670, sizes 100x30x19 mm

Stand 2.1670, sizes 100x30x19 mm
For thickness gauge

Details

KAEFER calibration certificate 0.1/0.01, 30 mm

KAEFER calibration certificate 0.1/0.01, 30 mm

DAkkS calibration certificate 0.1/0.01, 30 mm

DAkkS calibration certificate 0.1/0.01, 30 mm
