Sonorex Digitec

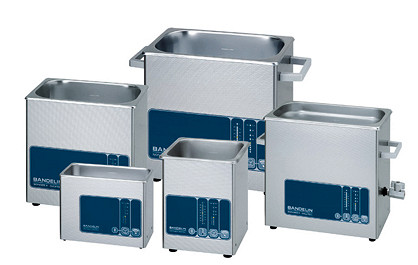

Compact ultrasonic bath SONOREX DIGITEC

Ultrasonic baths with keypress operating system - the new generation.

  • DEGAS: adjustable pulse sound level for removing unwanted air bubbles, visible at LCD-display
  • LED display for actual value and target value of temperature
  • Timer for countdown or continuous operation and LED display of the rest time

The choice of a suitable SONOREX DIGITEC depends of the size and the number of objects to clean or receptacles containing samples. There are different sizes of ultrasonic baths from 0.9 up to 90.0 litres for various applications.

Characteristics
  • full convenience in use and display for all bath types
  • easy to operate - self-explanatory symbols well recognizable parameters,
  • target as well as actual values - brightly lighting LED-display
  • 4-step-operation as "plug and clean"
  • PZT-transducers with high efficiency
  • SweepTec for permanent sound field oscillation ensures even and gentle cleaning
  • frequency HF 35 kHz
  • DEGAS: adjustable pulse sound level for removing unwanted air bubbles, visible at LCD-display
  • timer for countdown 1, 2, 3, 4, 5, 10, 15, 30 minutes ±5 % or continuous operation
  • H models with heating 20-80° C, accuracy ± 2.5°C, adjustable thermostat with LED display for target value and actual value of the temperature
  • automatic short-time ultrasound during heating for homogenisation of the liquid and to avoid delay in boiling - switch-off possible < 60 ° C
  • optical signal in case of excessive temperature
  • one-piece welded drain bow with filling level indicator, stainless steel, model RK 102 H in stainless steel hardchromed
  • models SONOREX DIHITEC CH with a very long service life thanks to the extraordinarily high strength of the bin welded 2 mm stainless steel (AISI 316 Ti) titanium-stabilized.
  • casing external in stainless steel AISI 304 resistant and protected against drops.
  • from DT102H models, drain valve included for easy emptying.
  • higher level of protection class IP 33 thanks to the liquid-tight mains cable and housing front without openings (waterproof membrane keyboard).
  • automatical safety shut-down 12 hours after last keypress
  • mains 230 V ~, 50/60 Hz.
  • SONOREX DIGITEC baths conform to RFI and marked CE as medical device
Table of available dimensions
