Sonorex Technik

Compared to the serie SUPER, the SONOREX TECHNIK models offer additional possibilities for intensive and even more demanding industrial use.
The SONOREX TECHNIK range currently consists of 4 series with common characteristics:
  • welded stainless steel cleaning tank, 2 mm
  • overflow gutter: combined with an oil separator and or a filtering system to continuously remove dirt, oils and grease floating on the surface of the tank
  • cleaning fluid filling level mark, facilitates dosing
  • welded drain with three-way ball valve for emptying or filling the tank and connecting a filtration system.
  • additional drain for connecting an oil separator and draining the overflow gutter.
  • heating: all models are available with (UH) or without (U) heating: on / off with control indicator, thermostatic, adjustable from 30 to 80 ° C.
  • case protected against drops of water in stainless steel.
  • for baskets, possibility of having a motorized lift with agitation function

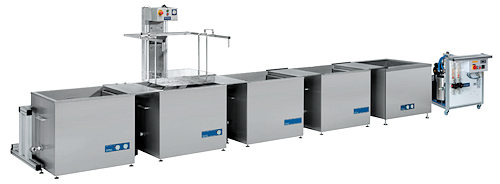

  • possibility of making sets of 2 to 5 stations with ultrasonic bath, rinsing bath, drying tank with a motorized translator / elevator / agitator

RM 16.2 to RM 75.2
  • inclined tank bottom for better cleaning results by optimal sound propagation. This facilitates the emptying of the tank and makes it possible to avoid as much as possible the accumulation of dirt and residual liquids at the bottom of the tank.
  • ultrasound: on / off with control indicator, timer 1 to 15 min. or continuous operation.
  • 40 kHz frequency generator (built-in).

RM 110 to RM 210
like RM 16.2 to RM 75.2 but
  • straight tank bottom
  • garden tube in the tank opposite the overflow gutter to create a flow on the surface of the bath that drains floating contamination, oils and grease from the surface of the bath into the overflow weir.
  • safety float switch as protection for heating and ultrasound against dry running.
  • feet adjustable in height for leveling on uneven supports.
  • ultrasonic generator (integrated): frequency 40 or 25 kHz
  • 40 kHz = more penetrating, 25 kHz = more powerful but noisier

RM 112 to RM 212
like RM 110 to RM 210 but
  • inclined tank bottom for better cleaning results by optimal sound propagation. This facilitates the emptying of the tank and makes it possible to avoid as much as possible the accumulation of dirt and residual liquids at the bottom of the tank.
  • rounded corners of the tank on the sides and bottom facilitate cleaning of the tank. Adherent soiling is avoided.
  • controls placed above to facilitate the manipulation of the switches for ultrasound and heating.

ZM 112 to ZM 212
  • like RM 112 to RM 212 but
  • external ultrasonic generator, installation of the generator in a location separate from the wet area is possible.
  • continuous power regulation.
  • serial communication interface and remote control connection for external control of the generator.
  • use of several cleaning baths, even with different frequencies, possible from a single generator.
  • model with lower sonication (ZM ... U / UH) or with lower and lateral sonication (ZM ... UL / UHL), also available in TwinSonic version.

TwinSonic design as multi-frequency device
The multi-frequency devices of TwinSonic design work with ultrasonic systems of different frequencies at the bottom and on the side. The advantages are uniform sonication and power distribution for better cleaning results in a shorter time.
