content="14/09/2022″/> Thickness gauge HTG-C

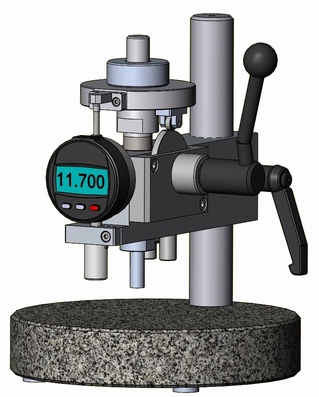

Thickness gauge HTG-C

without weight and contact point

Thickness gauge HTG-C
Thickness gauge HTG-C
2,582.00 *Prices are exclusive of VAT
Article code219204-V
  • thickness gauge without weight and contact point (see option & accessories)
  • modular design.

Technical specification

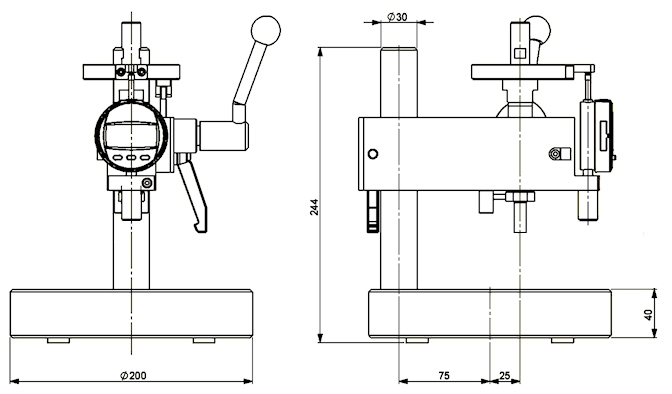

  • laboratory grade granite base: Ø200 mm x 40 mm
  • column diameter: 30 mm (hardened, grinded, stainless steel)
  • sturdy aluminium lever
  • manually operated lever for up and down movement of the weight
  • ball bearings enables low friction
  • digital gauge
  • measuring way 12,5 mm
  • resolution 0,001 mm
  • USB communication interface

Option & accessories
  • weight and contact point
  • ISO factory inhouse calibration certificate for digital gauge
  • DAkkS calibration certificate for digital gauge
  • HilMeasure software with USB connection cable
  • USB connection cable
