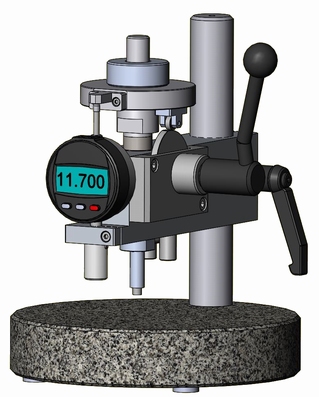

Thickness gauge HTG-7 according to ASTM D 1777-3

Thickness gauge HTG-7 according to ASTM D 1777-3
Thickness gauge HTG-7 according to ASTM D 1777-3
2,885.00 *Prices are exclusive of VAT
Article code219256
  • thickness gauge for films, glass cloths, glass tapes.
  • pressure: 172 kPa
  • modular design.
  • equipped with a weight of 546 grams and contact point Ø6,3 mm
  • other weights and contact points for other standards are available.
  • conforms to: ASTM D 1777-Option 3 (Standard Test Method for Thickness of Textile Materials)

Technical specification

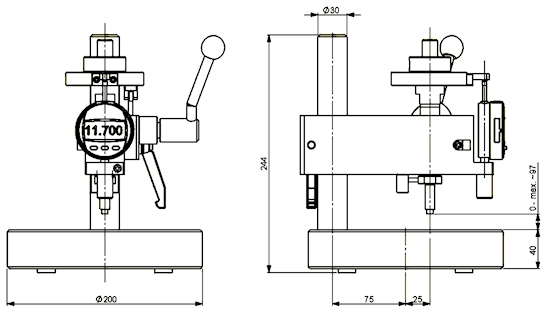

  • laboratory grade granite base: Ø200 mm x 40 mm
  • column diameter: 30 mm (hardened, grinded, stainless steel)
  • sturdy aluminium lever
  • contact point material: Stainless steel
  • individual serial number on the weight
  • manually operated lever for up and down movement of the weight
  • ball bearings enables low friction
  • digital gauge
  • measuring way 12,5 mm: you can measure material thickness up to 12 mm. Above 12 mm you require a slip gauge (accessories) and the Preset-Function of the electronic gauge (e.g. 10 mm slip block: Material thickness 10 up to 22 mm).
  • resolution 0,001 mm
  • USB communication interface

Option & accessories
  • weight and contact point
  • ISO factory inhouse calibration certificate for digital gauge
  • DAkkS calibration certificate for digital gauge
  • HilMeasure software with USB connection cable
  • USB connection cable
