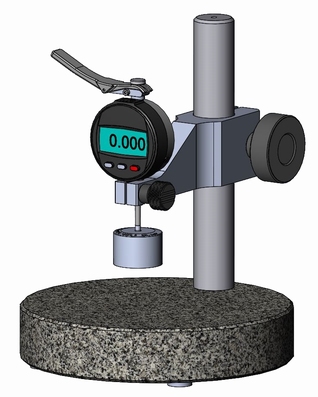

Thickness gauge HTG-11 according to DIN EN ISO 12625-3

Thickness gauge HTG-11 according to DIN EN ISO 12625-3

Thickness gauge HTG-11 according to DIN EN ISO 12625-3

Thickness gauge HTG-11 according to DIN EN ISO 12625-3

€ 1,633.00 *Prices are exclusive of VAT

Article code: 219260

thickness gauge for tissue.
pressure: 2 kPa ± 0,1 kPa, conforms 204 grams on the contact point.
modular design.
equipped with an interchangeable weight and contact point Ø35,7 mm.
other weights and contact points for other standards are available.
conforms to: DIN EN ISO 12625-3 (tissue paper and tissue products-part 3: determination of thickness, bulking thickness, apparent bulk density and bulk)

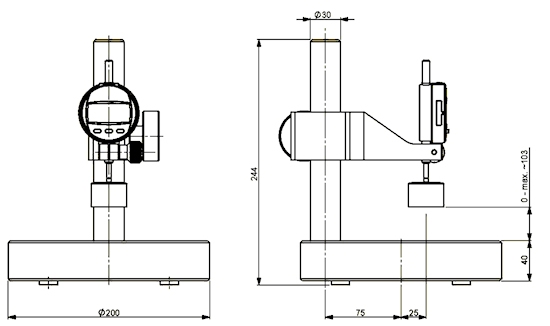

Technical specification

laboratory grade granite base: Ø200 mm x 40 mm
column diameter: 30 mm (hardened, grinded, stainless steel)
sturdy aluminium lever
contact point material: stainless steel
individual serial number on the weight
digital gauge with lifting device
max. measuring way: 12,5 mm - you can measure material thickness up to 12 mm. Above 12 mm you require a slip gauge (accessories) and the Preset-Function of the electronic gauge (e.g. 10 mm slip block: Material thickness 10 up to 22 mm
resolution 0,001 mm
USB communication interface

Option & accessories

weight and contact point
ISO factory inhouse calibration certificate for digital gauge
DAkkS calibration certificate for digital gauge
HilMeasure software with USB connection cable
USB connection cable

On order

Certificate factory

Quantity

Option & accessories

Insert Ø4/28,0 g for ISO 23529/ASTM D 3767, 22±5 kPa

Insert Ø4/28,0 g for ISO 23529/ASTM D 3767, 22±5 kPa

Insert Ø3/16,0 g for ISO 23529/ASTM D 3767, 22±5 kPa

Insert Ø3/16,0 g for ISO 23529/ASTM D 3767, 22±5 kPa

Insert Ø5/44,0 g for ISO 23529/ASTM D 3767, 22±5 kPa

Insert Ø5/44,0 g for ISO 23529/ASTM D 3767, 22±5 kPa

Insert Ø6/63,0 g for ISO 23529/ASTM D 3767, 22±5 kPa

Insert Ø6/63,0 g for ISO 23529/ASTM D 3767, 22±5 kPa

Insert Ø8/113 g for ISO 23529/ASTM D 3767, 22±5 kPa

Insert Ø8/113 g for ISO 23529/ASTM D 3767, 22±5 kPa

Insert Ø10/176,0 g for ISO 23529/ASTM D 3767, 22±5 kPa

Insert Ø10/176,0 g for ISO 23529/ASTM D 3767, 22±5 kPa

Insert Ø6,0/29,0 g for ISO 23529/ASTM D 3767, 10±2 kPa

Insert Ø6,0/29,0 g for ISO 23529/ASTM D 3767, 10±2 kPa

Insert Ø5,0/20,0 g for ISO 23529/ASTM D 3767, 10±2 kPa

Insert Ø5,0/20,0 g for ISO 23529/ASTM D 3767, 10±2 kPa

Insert Ø8,0/51,0 g for ISO 23529/ASTM D 3767, 10±2 kPa

Insert Ø8,0/51,0 g for ISO 23529/ASTM D 3767, 10±2 kPa

Insert Ø10,0/80,0 g for ISO 23529/ASTM D 3767, 10±2 kPa

Insert Ø10,0/80,0 g for ISO 23529/ASTM D 3767, 10±2 kPa

Insert Ø50,5/204 g for ISO 5084/1±0,01 kPa

Insert Ø50,5/204 g for ISO 5084/1±0,01 kPa

Insert Ø16,0/212,0 g for ASTM D 3767, 10±2 kPa

Insert Ø16,0/212,0 g for ASTM D 3767, 10±2 kPa

Insert Ø6,3/70,0 g for ASTM D 3767, 22±5 kPa

Insert Ø6,3/70,0 g for ASTM D 3767, 22±5 kPa

Insert Ø6,3/32,0 g for ASTM D 3767, 10±2 kPa

Insert Ø6,3/32,0 g for ASTM D 3767, 10±2 kPa

Insert Ø9,5/169 g/23,4±0,7 kPa for ASTM D 1777-Option 2

Insert Ø9,5/169 g/23,4±0,7 kPa for ASTM D 1777-Option 2

Insert Ø56,4/128,6 g/0,5 kPa for ISO 9073-2 Method A

Insert Ø56,4/128,6 g/0,5 kPa for ISO 9073-2 Method A

Insert Ø10/160 g/20 kPa for DIN EN 1849-2

Insert Ø10/160 g/20 kPa for DIN EN 1849-2

Insert 25,3/200 g/4 kPa for DIN EN ISO 24346-part 2

Insert 25,3/200 g/4 kPa for DIN EN ISO 24346-part 2

Insert Ø35,7/204 g/2 kPa for DIN EN ISO 12625-3

Insert Ø35,7/204 g/2 kPa for DIN EN ISO 12625-3

Insert 035,7/204 g/2±0,2 kPa for DIN EN ISO 2286-3

Insert 035,7/204 g/2±0,2 kPa for DIN EN ISO 2286-3

Insert Ø10,0/40,0 g/5±0,5 kPa for DIN EN ISO 2286-3

Insert Ø10,0/40,0 g/5±0,5 kPa for DIN EN ISO 2286-3

Insert Ø10,0/80,0 g/10±1,0 kPa for DIN EN ISO 2286-3

Insert Ø10,0/80,0 g/10±1,0 kPa for DIN EN ISO 2286-3

Insert Ø10,0/192,2 g/24±2,4 kPa for DIN EN ISO 2286-3

Insert Ø10,0/192,2 g/24±2,4 kPa for DIN EN ISO 2286-3

Insert Ø28,7/273,0 g/4,14±0,21 kPa for ASTM D 1777-Option 1

Insert Ø28,7/273,0 g/4,14±0,21 kPa for ASTM D 1777-Option 1

Insert Ø28,7/46,2 g/0,7±0,07 kPa for ASTM D 1777-Option 5

Insert Ø28,7/46,2 g/0,7±0,07 kPa for ASTM D 1777-Option 5

Insert Ø6,35/29,0 /9,0 kPa for ASTM F 2251

Insert Ø6,35/29,0 /9,0 kPa for ASTM F 2251

USB interface cable for HTG

USB interface cable for HTG

HilMeasure data acquisition software HTG-1

HilMeasure data acquisition software HTG-1
