Sensor F5 for Minitest 745 & SmarTest

Sensor F5 for Minitest 745 & SmarTest
650.00 *Prices are exclusive of VAT
Article code80-135-0400
Sensor F5 for Minitest 745 for the non-destructive coating thickness measurement of non-magnetic surfaces (paint, synthetic material, chromium etc.) on ferromagnetic substrates (steel)

Technical specification
  • measuring range: 0~5.0 mm
  • low range resolution: 0.1 μm
  • typical field of application: small samples, thin coatings, can be used with measuring stand
  • measuring principle: magnetic induction
  • signal processing: sensor-integrated 32 bits signal processing (SIDSP®)
  • accuracy: ± (1.5 μm + 0.75 % of reading)
  • minimum curvature radius convex: 1.5 mm
  • minimum curvature radius concave: 10 mm
  • minimum measuring area: Ø 10 mm
  • minimum substrate thickness: 0.5 mm

Standard delivery
  • probe F5
  • calibration set with calibration standards and zero reference plate(s)

Options to specify with the order
  • version heavy-duty HD

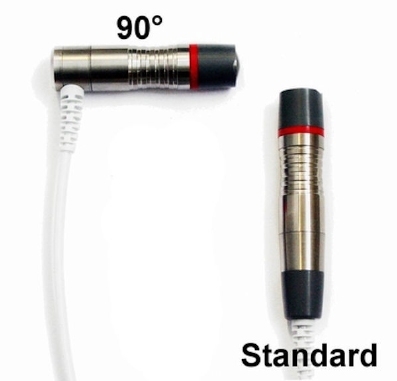

  • output cable at 90 °
