Sensor F0.5 for Minitest 745

€ 885.00 *Prices are exclusive of VAT

Article code: 80-135-1600

Sensor F0.5 for Minitest 745 for the non-destructive coating thickness measurement of non-magnetic surfaces (paint, synthetic material, chromium etc.) on ferromagnetic substrates (steel)

Technical specification

measuring range: 0~0.5 mm
low range resolution: 0.02 μm
typical field of application: small samples, thin coatings, can be used with measuring stand
measuring principle: magnetic induction
signal processing: sensor-integrated 32 bits signal processing (SIDSP®)
accuracy: ± (1 μm + 0.75 % of reading)
minimum curvature radius convex: 1.0 mm
minimum curvature radius concave: 7.5 mm
minimum measuring area: Ø 5 mm
minimum substrate thickness: 0.3 mm

Standard delivery

probe F0.5
calibration set with calibration standards and zero reference plate(s)

Options to specify with the order

version heavy-duty HD

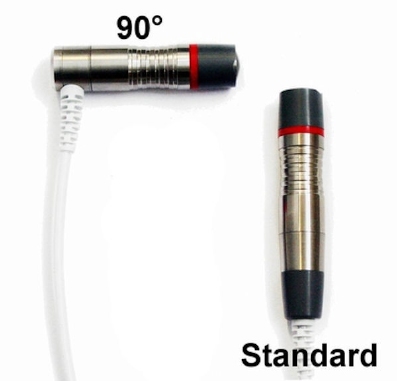

output cable at 90 °
