Miniature sensor F05M-45° for Minitest 745 & SmarTest

€ 1,011.00 *Prices are exclusive of VAT

Article code: 80-135-2900

Miniature sensor F0.5M-45 for Minitest 745 for the non-destructive coating thickness measurement of non-magnetic surfaces (paint, synthetic material, chromium etc.) on ferromagnetic substrates (steel)

Technical specification

measuring range: 0~0.5 mm
low range resolution: 0.05 μm

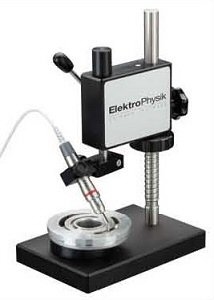

typical field of application: small samples, thin coatings, can be used with measuring stand
measuring principle: magnetic induction
direction of measurement: 45°
signal processing: sensor-integrated 32 bits signal processing (SIDSP®)
accuracy: ± (0.5 μm + 0.75 % of reading)
minimum curvature radius convex:
minimum curvature radius concave:
minimum measuring area: Ø 3 mm
minimum substrate thickness:

Standard delivery

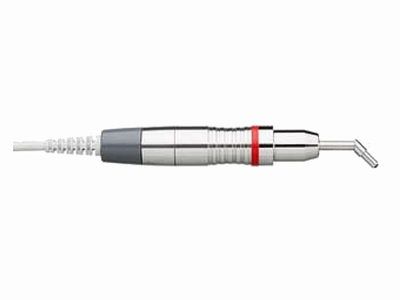

probe F0.5M-45
calibration set with calibration standards and zero reference plate(s)
