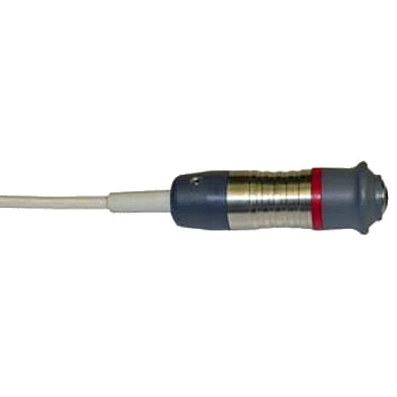

SensorN2.5-HD for Minitest 7400

€ 902.00 *Prices are exclusive of VAT

Article code: 80-173-3500

Quantity

Sensor N2.5-HD extra robust for harsh environments for Minitest 7400 for the non-destructive coating thickness measurement of insulating coatings (varnish, enamel, synthetic material etc.) on conductive substrates (aluminium, copper, austenitic stainless steel).

equipped with a special protection to seal the electronics of the sensor against contamination such as dust or particles of paint
pressure system with outdoor spring for an easy cleaning after use

Technical specification

measuring range: 0~2.5 mm
low range resolution: 0,1 µm
typical field of application: typical field of application: standard sensor for a wide field of application
measuring principle: eddy current
signal processing: sensor-integrated 32 bits signal processing (SIDSP®)
accuracy: ± (1.5 µm + 0.75% of reading)
repeatability: ± (0.8 µm + 0.5% of reading)
minimum curvature radius convex: 1.5 mm
minimum curvature radius concave: 10 mm
minimum measuring area:
* with stand: Ø 10 mm
* without stand: Ø 14 mm
minimum substrate thickness: 40 µm
dimension (ØxL): 20,5x78 mm
cable outlet: straight

Standard delivery

probe N2.5-HD
calibration set with calibration standards and zero reference plate(s)
