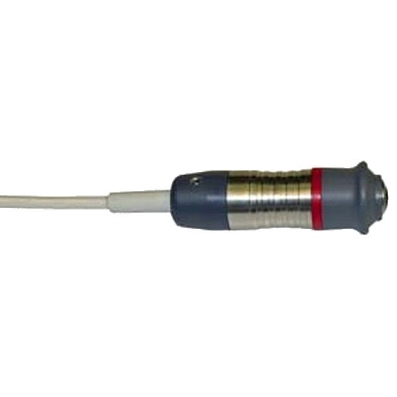

Sensor N0.7-HD for Minitest 7400

Sensor N0.7-HD for Minitest 7400
1,038.00 *Prices are exclusive of VAT
Article code80-173-3100
Sensor N0.7-HD extra robust for harsh environments for Minitest 7400 for the non-destructive coating thickness measurement of insulating coatings (varnish, enamel, synthetic material etc.) on conductive substrates (aluminium, copper, austenitic stainless steel).
  • equipped with a special protection to seal the electronics of the sensor against contamination such as dust or particles of paint
  • pressure system with outdoor spring for an easy cleaning after use

Technical specification
  • measuring range: 0~0.7 mm
  • low range resolution: 0.05 μm
  • typical field of application: small samples, thin coatings, can be used with measuring stand
  • measuring principle: eddy current
  • signal processing: sensor-integrated 32 bits signal processing (SIDSP®)
  • accuracy: ± (1 μm + 0.75 % of reading)
  • repeatability: ± (0.5 μm + 0.5 % of reading)
  • minimum curvature radius convex: 1.0 mm
  • minimum curvature radius concave: 7.5 mm
  • minimum measuring area:
    * with stand:  Ø 5 mm
    * without stand:  Ø 14 mm
  • minimum substrate thickness: 40 µm
  • dimension (ØxL): 20,5x78 mm
  • cable outlet: straight

Standard delivery
  • probe N0.7-HD
  • calibration set with calibration standards and zero reference plate(s)
