Sensor FN5/2.5 for Minitest 7400

Sensor FN5/2.5 for Minitest 7400
0.00 *Prices are exclusive of VAT
Article code80-173-0600

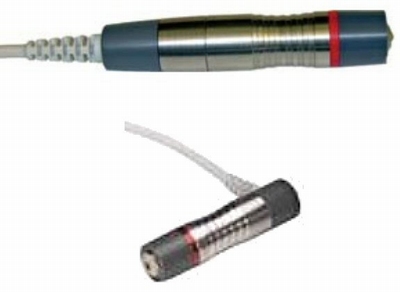

Sensor FN5/2.5 for Minitest 7400 with auto-rcognition for the non-destructive coating thickness measurement of non-magnetic surfaces (paint, synthetic material, chromium etc.) on ferromagnetic substrates (steel) or insulating coatings (varnish, enamel, synthetic material etc.) on conductive substrates (aluminium, copper, austenitic stainless steel).

Technical specification
  • measuring range: F: 0~5mm / N:0~2.5mm
  • low range resolution: 0.1 μm
  • typical field of application: small samples, thin coatings, can be used with measuring stand
  • sensor model: combined, auto-recognition F/N
  • measuring principle: magnetic induction & eddy current
  • signal processing: sensor-integrated 32 bits signal processing (SIDSP®)
  • accuracy: ± (1.5 μm + 0.75 % of reading)
  • repeatability: ± (0.8 μm + 0.5 % of reading)
  • minimum curvature radius convex: 1.5 mm
  • minimum curvature radius concave: 10 mm
  • minimum measuring area:
    * with stand:  Ø 5 mm
    * without stand:  Ø 14 mm
  • minimum substrate thickness: F: 0.5 mm, N: 40 µm
  • dimension:
    * right-cable outlet (ØxL): 15,3x62,5 mm
    * straight cable outlet (ØxL): 15,3x100 mm

Standard delivery
  • probe FN5/2.5
  • calibration set with calibration standards and zero reference plate(s)

Please confirm the cable outlet when ordering
