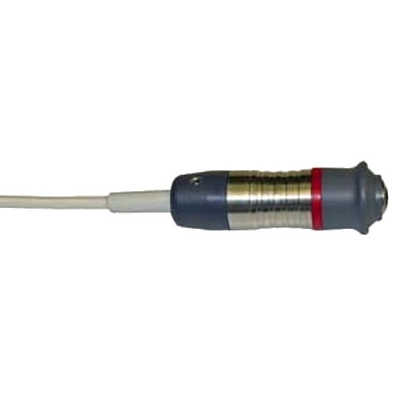

Sensor F5-HT350 for Minitest 7400, high temperature

€ 2,721.00 *Prices are exclusive of VAT

Article code: 80-173-5600

Quantity

Sensor F5-HT350 for high temperature & extra robust for harsh environments for Minitest 7400 for the non-destructive coating thickness measurement of non-magnetic surfaces (paint, synthetic material, chromium etc.) on ferromagnetic substrates (steel)

version for high temperature up to 350°C
equipped with a special protection to seal the electronics of the sensor against contamination such as dust or particles of paint
pressure system with outdoor spring for an easy cleaning after use

Technical specification

measuring range: 0~5 mm
low range resolution: 0.1 μm
typical field of application: standard sensor for a wide field of application
measuring principle: magnetic induction
signal processing: sensor-integrated 32 bits signal processing (SIDSP®)
accuracy: ± (1,5 μm + 0.75 % of reading)
repeatability: ± (0.8 μm + 0.5 % of reading)
minimum curvature radius convex: 1.5 mm
minimum curvature radius concave: 10 mm
minimum measuring area:
* with stand: Ø 10 mm
* without stand: Ø 14 mm
minimum substrate thickness: 0.5 mm
dimension (ØxL): 20,5x78 mm
cable outlet: straight

Standard delivery

probe F5-HT350
calibration set with calibration standards and zero reference plate(s)
