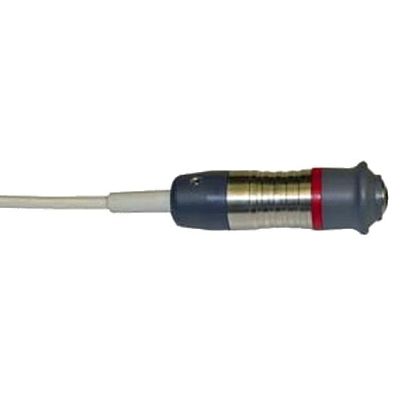

Sensor F2-HD for Minitest 7400, for rough environments

Sensor F2-HD for Minitest 7400, for rough environments
806.00 *Prices are exclusive of VAT
Article code80-173-3300
Sensor F2-HD extra robust especially appropriate for rough surfaces for Minitest 7400 for the non-destructive coating thickness measurement of non-magnetic surfaces (paint, synthetic material, chromium etc.) on ferromagnetic substrates (steel)
  • sensor pole specially adapted to rough surfaces
  • equipped with a special protection to seal the electronics of the sensor against contamination such as dust or particles of paint
  • pressure system with outdoor spring for an easy cleaning after use

Technical specification
  • measuring range: 0~2 mm
  • low range resolution: 0.1 μm
  • typical field of application: small samples, thin coatings, can be used with measuring stand
  • measuring principle: magnetic induction
  • signal processing: sensor-integrated 32 bits signal processing (SIDSP®)
  • accuracy: ± (1.5 μm + 0.75 % of reading)
  • repeatability: ± (0.8 μm + 0.5 % of reading)
  • minimum curvature radius convex: 1.5 mm
  • minimum curvature radius concave: 10 mm
  • minimum measuring area: Ø 14 mm
  • minimum substrate thickness: 0.5 mm
  • dimension (ØxL): 20,5x78 mm
  • cable outlet: straight

Standard delivery
  • probe F2-HD
  • calibration set with calibration standards and zero reference plate(s)
