Digital coating thickness gauge MiniTest 725 FN2.6

for car bodies steel & alu

Digital coating thickness gauge MiniTest 725 FN2.6
Digital coating thickness gauge MiniTest 725 FN2.6
Digital coating thickness gauge MiniTest 725 FN2.6
1,236.00 *Prices are exclusive of VAT
Article code80-136-2300

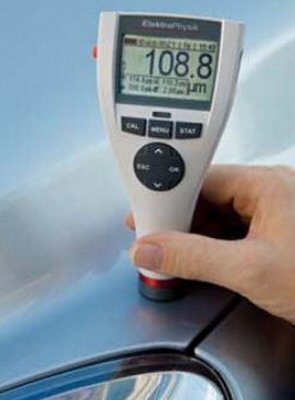

MiniTest 725 FN2.6/1.0 with built-in integral combined sensor with auto-rcognition particularly adapted for measurement on car bodies for the non-destructive coating thickness measurement of non-magnetic surfaces (paint, synthetic material, chromium etc.) on ferromagnetic substrates (steel) or insulating coatings (varnish, enamel, synthetic material etc.) on conductive substrates (aluminium, copper, austenitic stainless steel).

Highly unsusceptible to variation of the geometries or base materials.


  • handy, accurate and versatile coating thickness gauge for use in laboratories, factories and on the go.
  • for a variety of measurements, offer different calibration methods and because of the compact design are suited for use as much in quality assurance laboratories, as in production processes and on the go.
  • SIDSP sensor technologically advanced and unique in the accuracy and reproducibility on account of the manufacturing process. Despite high accuracy the sensor is wear resistant and withstand even years of use on rough surfaces. Each sensor is subject to a fully automatic factory test and provided with 50 calibration points for correction of even the slightest deviations. Furthermore, while manufacturing them each sensor is encoded with temperature compensation for automatic correction of the effects of temperature on readings.
  • operated via a graphic interface.
  • storage for 10,000 readings.
  • menu-driven user guidance is available in 20 languages..
  • Mini-USB & Bluetooth 4.0 data transmission to PC and printer.

Technical specification
  • measuring range: F: 0~2.6 mm / N:0~1.0 mm
  • low range resolution: 0.1 μm
  • typical field of application: small samples, thin coatings, can be used with measuring stand
  • sensor model: integrated, combined, auto-recognition F/N
  • measuring principle: magnetic induction & eddy current
  • signal processing: sensor-integrated 32 bits signal processing (SIDSP®)
  • accuracy: ± (1 μm + 0.75 % of reading)
  • minimum curvature radius convex:
  • minimum curvature radius concave:
  • minimum measuring area: Ø 5 mm
  • minimum substrate thickness: F: 0,3 mm, N: 40 µm
  • max. measuring rate in single readings mode: 70 readings per min
  • measuring rate in continuous mode: 20 readings per second
  • data memories: 10 batches for max. 10,000 readings in total
  • statistics: number of readings, minimum, maximum, average, standard deviation, coefficient of variation, block statistics (norm-conforming/free configurable)
  • calibration procedures:  according to international norms and standards ISO, SSPC, „Swedish“, „Australian“
  • calibration: factory, Zero, 2-point and 3-point calibration, user adjustable offset value
  • monitoring of limits: visual and audible alarm to indicate limit deviations
  • measuring units: μm, mm, cm; mils, inch, thou
  • operating temperature: -10~+60 °C
  • storing temperature: -20~+70 °C
  • data port: Mini-USB, Bluetooth 4.0
  • power supply: 2 Mignon/AA batteries
  • norms and standards: DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, 19840 ASTM B244, B499, D7091, E376 AS 3894.3, SS 1841 60, SSPC-PA 2
  • dimensions : 157 x 75.5 x 49 mm
  • weight: approx. 210 g

Standard delivery
  • MiniTest 725 with integrated probe FN2.6/1.0

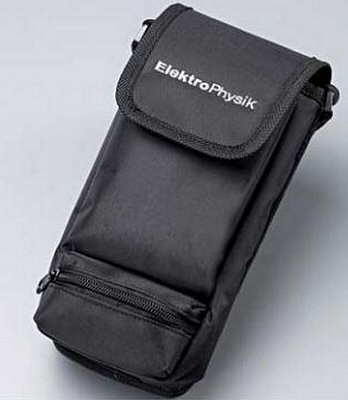

  • shoulder bag with belt clip
  • user guidance German/English/French/Spanish on CD
  • calibration set with calibration standards and zero reference plate(s)
  • MSoft 7 Basic, data transfer software on CD-ROM
  • 2 AA cells, type LR06
  • plastic carrying case

Accessories
  • calibration foils with certificate, set or individual
  • rubber protection case
  • MSoft 7 Professional, data evaluation software on CD-ROM
  • MiniPrint 7000 data printer
