MikroTest G5, standard, 0~100 µm

MikroTest G5, standard, 0~100 µm
MikroTest G5, standard, 0~100 µm
MikroTest G5, standard, 0~100 µm
544.00 *Prices are exclusive of VAT
Article code80-639-0001

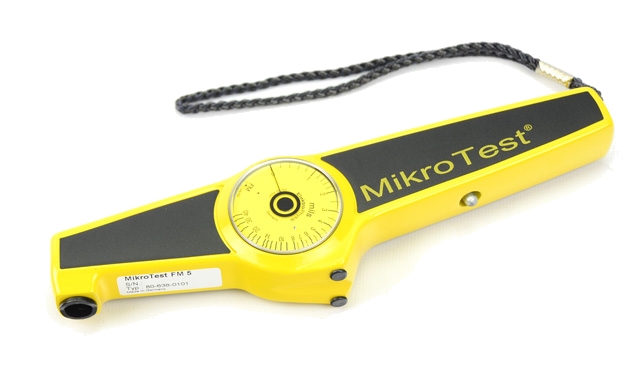

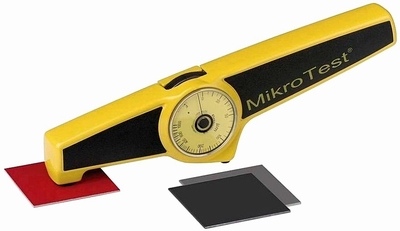

MikroTest thickness gauge for quick, precise and non-destructive measurement of coating (electroplating, nickel, phosphating, paint, plastic, enamel...) on steel
  • no power supply
  • no calibration
  • the balanced measuring system ensures accurate readings at any angle: horizontal, vertical, overhead
  • measurements on curved surfaces
  • precise measurements in tubes and on round parts
  • conform to national and international standards: EN ISO 2178, DIN 50982, ASTM B 499, E 376, D 1186, G 12, B 530, BS 5411, ISO 2361

Measuring principle

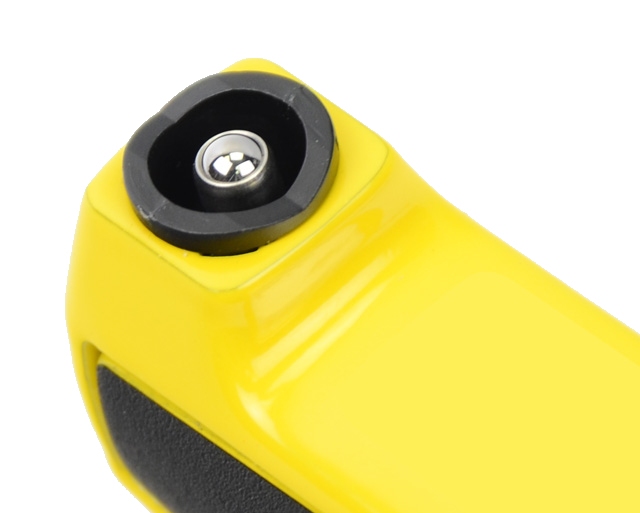

The measurement of the coating thickness is based on magnetic attraction. The attractive force is related to the distance between a permanent magnet and a steel substrate.
This distance represents the thickness of the coating to be measured. The magnet is lifted from the surface by means of a spring connected to the magnet arm. The force needed to lift the magnet is directly related to the angle of rotation of the torsion spring.
Features to make your quality control more precise and accurate:
  • highest accuracy with simplest operation
  • no calibration necessary, simple set-up and measurement
  • without power or battery
  • one point measurement
  • robust metal case to protect from mechanical shocks
  • precision measuring system resistant to solvents

Technical data
  • range: 0~100 μm
  • accuracy: ± 1 μm or 5% of reading
  • minimum surface: Ø 20 mm
  • minimum curvature radius of the sample: 5 mm convex/ 25 mm concave
  • minimum base thickness: 0.5 mm
  • manual version: the operator must turn a wheel until the detachment of the magnet
  • ambient temperature: –20°C~100°C ·
  • dimensions: gauge 215x55x29 mm, plastic carrying case 235x185x46 mm·
  • weight: case incl. gauge approx. 560 g

Supply schedule
  • MikroTest gauge with hand strap
  • soft pouch
  • operating instructions

Useful accessories
  • belt pouch for safe transport of the MikroTest (82-010-0020)
  • wet film gauge for measuring the thickness of wet coatings
  • coating thickness standards for checking accuracy (82-050-0070)
