Digital coating thickness gauge JCT 100, FN, 2000 µm/0,1 µm

Free Shipping B,L,F,NL,D

€ 445.00 € 378.00 *Prices are exclusive of VAT

Manufacturer: SAUTER GmbH
Article code: JCT 100

0 star(s) in 0 review(s) Write a review

Premium model

accurately determines the thickness of coats of paint or varnish on iron or non-iron base material
combination of magnetic and eddy current measuring methods enables particularly high levels of precision and flexibility. The base material is detected automatically
stable, reliable performance as well as non-destructive measuring
measuring range up to 2000 µm
low-wear sensor thanks to state-of-the-art technologies
single and two-point calibration
single and repeated measurements for pass/fail assessment. The three-colour LED display shows the current value attribute (green: qualified, red: below the limit value, yellow: above the limit value)

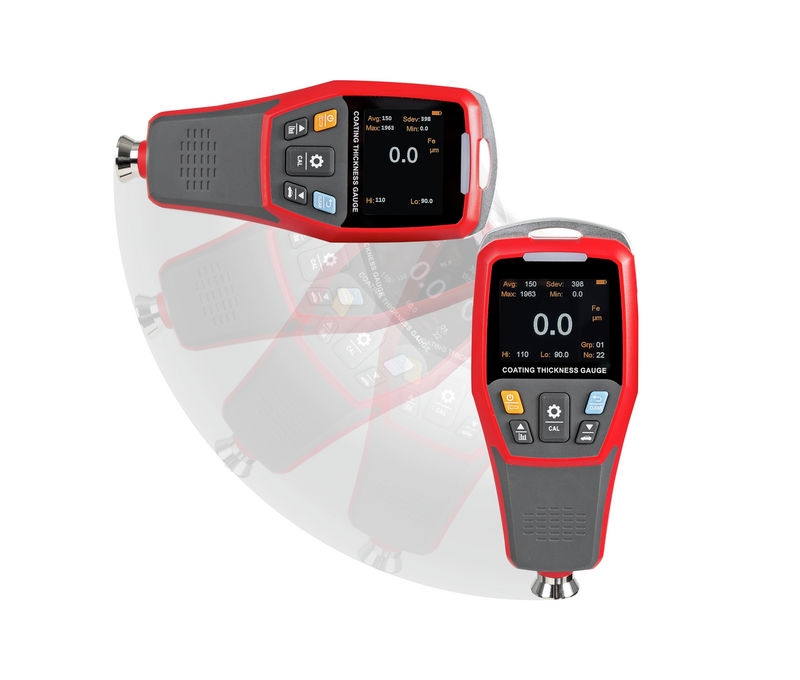

the display rotates automatically and makes it easier for the user to read the measured values from many different angles, or alternatively it can be locked in place manually
selection of functions with automotive mode, voice transmission, Bluetooth App and LED torch
Bluetooth App included for communication and applications
main application areas: Coating thickness measurement on metals in industry and research, for example in the automobile industry, metal processing, painting and inspection

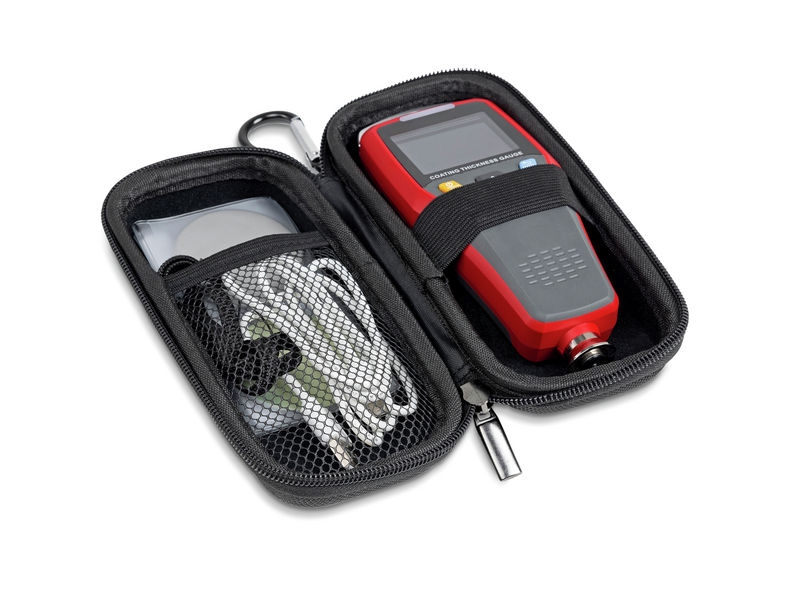

delivery in a practical box

Technical specification

complies with ISO 2360, DIN, ASTM & BS standards
measuring range: 0~2000 µm
resolution:
* range 0~0.99 µm: 0.1 µm
* range 100~2000 µm: 1 µm
accuracy:± (2% of measured value + 2) µm
2" TFT color screen with automatic display rotation 0/90/180/270° and backlight adjustable to 5 levels
buzzer can be activated for confirmation of measurement
unit of measurement: µm/mil
measuring pressure: 0.3~1.5 N
3 probe modes: automatic, Fe, NFe
2 measurement modes: point by point or continuous
2 calibration modes: zero or zero + calibration sheet
statistics: max/min/avg
min/max tolerance function with possibility of activating a red/green LED alarm
55 group memory with max 60 measurements per group
USB 2.0 & Bluetooth interface for transfer of measurements up to a maximum distance of 10 m
program for receiving measurements on PC downloadable from the KERN website
operation on rechargeable lithium-ion battery of 3.7V 1300mAh, recharged via USB charger
AUTO-OFF function after 5 minutes to save battery charge
housing material: plastic
conditions of use: 0~40°C, < 80% Rh
dimensions LxDxH 152×65×35 mm
net weight approx. 120g
2 years warranty

Scope of delivery

Not included: 5V USB charger
