Platform balance inox SXC, IP68, 30 kg, 2 g, 500×400 mm

free delivery B,L,F,NL,D

€ 1,280.00 € 1,167.00 *Prices are exclusive of VAT

Manufacturer: KERN
Article code: SXC 30K-3L

0 star(s) in 0 review(s) Write a review

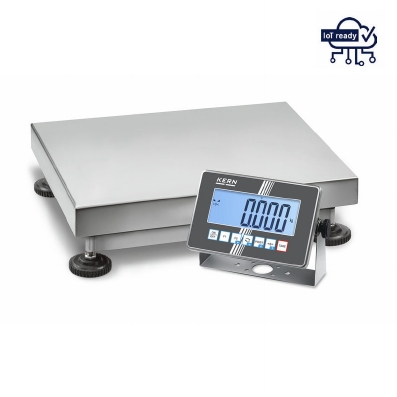

IP68 stainless steel platform scale with XL IP68 display. Ideal for severe industrial applications, robust stainless steel display with IP68 protection. Industrial quality: sturdy construction, easy to clean. Optimized for the very strict hygiene requirements of the food industry.

capacity: 30 kg
resolution: 2 g
linearity: ± 6 g
reproducibility: 2 g
tray dimensions (stainless steel): LxDxH 500×400×117 mm
XL backlit LCD display, digit height 48 mm
designed for the very strict hygiene conditions of the food industry
stainless steel display, IP68 protection level, hygienic and easy to clean
stainless steel sensors, silicone coating. IP68: protected against dust and splashing water

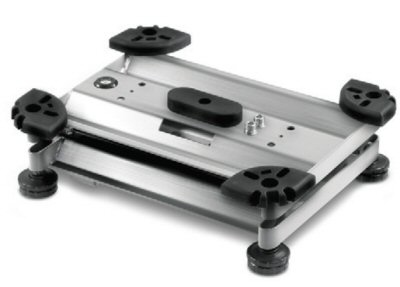

platform structure entirely in stainless steel
display with variable position: e.g. free, placed on the table or screwed to the wall (support supplied)
uniform and comfortable KERN operating philosophy, consistent across all products in terms of design, menu structure, button functions, interface connection and interface protocol
industry 4.0: exchange of data and control commands is optional using up to four interfaces to meet individual needs: two wired connections (RS 232, Ethernet, USB or analog module) and two wireless connections (WiFi, Bluetooth )
each interface can be set separately, e.g. :
* interface 1 (WiFi): continuous sending to a computer to document a process
* interface 2 (RS-232): print a stable weighing value
* interface 3 (analog module): control of a device when the target weight is reached
* interface 4 (Bluetooth): continuous sending to a tablet to document a process
Note: Only two wired connections (RS-232, Ethernet, USB or analog module) and two wireless connections (WiFi, Bluetooth) can be used at the same time
optional alibi memory for paperless archiving of weighing results. It is thus possible to evaluate and process the results electronically in accordance with regulations.
remote interrogation and control of the balance via computer or CRM/ERP systems using the KERN communication protocol
Simplified battery change thanks to an easily accessible case.
Real-time clock as standard: allows weighing results to be recorded with the exact time. Even after an interruption of the power supply, the scale can continue to operate with the correct time
functions: counting, tolerance, %, sum, dynamic weighing
minimum weight per piece for counting:
* normal: 10 g
* laboratory: 1 g
dynamic weighing: a single touch provides a stable average in unstable environmental conditions or when weighing animals
weighing with tolerance range (Checkweighing): entry of an upper/lower limit value. An optical and acoustic signal assists portioning, dosing and sorting + possibility of connecting an external signal lamp, CFS-A03
automatic CAL adjustment program by external weight, test weight at additional cost
230 Vac mains power supply integrated into the display
operation with internal battery, standard, operating time up to 80 h, charging time approx. 12 p.m.
display dimensions LxDxH 232×150×80 mm
length of platform/display connection cable: approx. 2.5m
tolerated ambient temperature -10°C / 40°C
net weight approx. 22 kg
2 years warranty

Click here to download the brochure in PDF format

Quantity

Option & accessories

DAkkS calibration certificate (option)
internal battery, service life up to 48 hours without backlight, charging time approx. 8 a.m., YKR-01
conveyor with easily maneuverable steel rollers, hot-dip galvanized, ball bearings, robust aluminum profile frame, YRO-02
column to place the display vertically, height of the column approx. 1040mm, BFS-A07
column to screw to the platform column height approx. 330mm, SXC-A01
column to screw to the platform column height approx. 600mm, SFB-A01
internal RS-232 data interface, interface cable included, KUM-01 (option)
internal USB data interface, interface cable included, KUM-03 (option)
internal Ethernet data interface, KUM-04 (option)
internal WiFi data interface, interface cable included, KUM-05 (option)
interface adapter internal data interface Bluetooth, KUM-06 (option)
analog module, KUM-08 (option)
memory modules (alibi memory), YMM-04 (option)
protection against electrostatic discharge ESD e.g. when the scale is touched by an electrostatically charged object or people, YGR-01
indicator light to provide visual assistance for weighing with a tolerance range, connection only possible in combination with KUM-01 (RS-232 interface), CFS-A03
via KUP-01 module, printer 911-013, YKG-01, YKE-01, YKB-01N, YKH-01 or YKN-01
