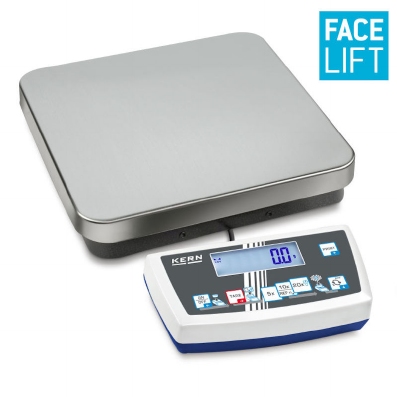

Counting balance CDS, 30 kg / 0.1 g, 308x318 mm

Free Shipping B,L,F,NL,D

Counting balance CDS, 30 kg / 0.1 g, 308x318 mm
Counting balance CDS, 30 kg / 0.1 g, 308x318 mm
€ 670.00 611.00 *Prices are exclusive of VAT
Manufacturer KERN
Article codeCDS 30K0.1
  • weighing range: 30 kg
  • readout: 0,1 g
  • linearity: ± 0,5 g
  • reproducibility: 0,2 g
  • minimum piece weight: 1 g
  • weighing plate (inox): 308x318x75 mm
  • backlit LCD display, digit height 21 mm
  • self-explanatory graphic control panel, even without operating instructions, the counting process can be understood immediately.
    * no learning time = reduces costs
    * ideal for untrained users
    * visualised process means that operating errors are avoided
  • the 4 steps are carried out from left to right:
    1 - place the empty container onto the weighing plate and tare by pressing the TARE key
    2 - place the reference quantity for the goods to be counted into the container (5, 10, or 20 pieces)
    3 - confirm the selected reference quantity by pressing the key (5, 10 or 20)
    4 - pour in the goods to be counted. The number of pieces will immediately be shown on the display
  • precise counting: the automatic optimisation of reference weight gradually improves the average value of the piece weight
  • two balances in one: switching from counting mode to weighing mode at the touch of a button
  • adjusting program CAL: for quick setting up of the balance’s accuracy. External adjusting weight required
  • universal Port (KUP) interface: allows connection of an external high-speed KUP interface adapter (RS-232, USB, Bluetooth or Ethernet, for example), for the exchange of data and commands, without assembly difficulties
  • communication Protocol (KCP): the KCP allows the balance to be viewed and controlled remotely using external control devices or a computer
  • compatible EasyTouch programs
  • universal external power supply: 100~240 Vac / 6Vdc-1A
  • dimensions of display device WxDxH 225x115x60 mm
  • permissible ambient temperature: -10~+40°C
  • net weight: approx. 7,5 kg
  • warranty: 3 years

Click here to download the brochure in Pdf format
Option & accessorie
  • DAkkS certificate (option)
  • mount to fasten the display device to the platform, DE-A11N
  • stand to elevate display device, h=480 mm, DE-A10
  • set for underfloor weighing, consists of platform, bow, hook, DS-A01
  • RS-232 external data interface, interface cable included, YKUP-01
  • USB external data interface, interface cable included, YKUP-03
  • 3-channel extension box KUP, YKUP-13
  • printer YKS-01, YKN-01, YKE-01, YKB-01N, YKH-01 or YKG-01 (requires YKUP-01)
  • Software BalanceConnection, for very flexible transmission of measured values, e.g. to Microsoft® Excel or Access or to other apps and programs, included in delivery: 1 CD, 1 license, SCD-4.0
  • replacement Keyboard/Display/Case Cover
