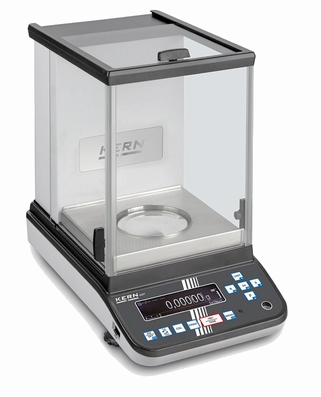

Analytical balance ABP, 102/220 g-0,01/0.1 mg, Ø 91 mm (M)

Free Shipping B,L,F,NL,D

€ 3,400.00 € 3,098.00 *Prices are exclusive of VAT

Manufacturer: KERN
Article code: ABP 200-5DM

Features

This new generation of analytical balances combines the highest level of precision with large weighing capacities. Thanks to the new Single-Cell Generation, the weighing result is displayed in a fraction of the time with comparable models. Together with the intuitively structured menu, this means that you can work efficiently and rapidly

bright OLED display with large viewing angle for the very best readout from a wide range of lines of sight
RS 232 and USB interfaces for the transfer of weighing data to PCs, tablets, printers as well as for the connection of external devices, such as barcode scanners (option), numeric keypad (option), etc.
GLP/ISO record keeping: professional, detailed GLP-Protocol, so that the balance is completely compliant with the relevant standard requirements in accordance with ISO, GLP and GMP navigation pad for super quick navigating through the menus
automatic internal adjustment in the case of a change in temperature ≥ 1 °C or timecontrolled every 4 h, guarantees high degree of accuracy and makes the balance independent of its location of use. For applications which do not require verification the time interval can be individually adjusted
the minimum weight of sample can be manually stored in the device or automatically calculated. For weighings below this value, the balance issues a warning message
dosage aid: high-stability mode and other filter settings can be selected
mains adapter for voltage supply to the KERN CE, can be fitted on the DIN rail
simple recipe weighing and documenting with a combined tare/print function. In addition, the ingredients for the recipe are numbered automatically and printed out with their corresponding number and nominal weight
individual user settings for up to 10 users can be saved: user name/user number (can be printed out or added to the record for each process), password, menu language, user profiles, accessing user settings via barcode, additional guest mode for users who are not logged in, authorizations, eg. B.
balance adjustment, changing settings or conditioning or modification of a recipe only by the authorized person & performing the formulation by the user
U.S. FDA 21 Part 11: assists you in data integrity in accordance with U.S. Pat. FDA 21 Part 11 (for example (weighing result, sample ID, user name, scales ID, ...)
menu language DE, GB
automatic data output to the PC/printer each time the balance is steady
large glass draught shield with 3 sliding doors for easy access to the items being weighed.
multi-function weighing plate included with delivery, minimises the effect of currents of air in the weighing space and therefore significantly improves the stabilization time and repeatability. In addition samples, sample paper, PCR containers, micro centrifuge tubes and many other items which protrude can be easily fixed in place and weighed easily
protective working cover included with delivery

Technical specification

weighing range: 102/220 g
readout: 0,01/0,1 mg
verification value: 1 mg
minimum load: 1 mg
linearity: ± 0,03/0,3 mg
reproducibility: 0,02/0,1 mg
draft shield standard, weighing space: WxDxH 166×156×220 mm
luminescent OLED display, digit height 14 mm, bright with high contrast, for easy reading of the weight, even in poor lighting conditions
dimensions of weighing plate (stainless steel): Ø 91 mm
suspended weighing: load support with hook on the underside of the balance
automatic internal adjustment in the case of a change in temperature > 1°C or time-controlled every 4 hours
single-cell advanced technology:
* fully automatic manufactured weighing cell from one piece of material
* stable temperature behaviour
* short stabilisation time: Steady weight values within approx. 2~8 sec under laboratory conditions
* shock proof construction
* high corner load performance
functions: counting, net-total, %, units, GLP
adjusting with internal weight
main adapter external 100~240 Vac 12 Vdc / 1 A standard
data interface RS232, USB
overall dimensions WxDxH 166×156×220 mm
permissible ambient temperature 10°C / 30°C
net weight approx. 8 kg
warranty 3 years

Click here to download the brochure in Pdf format

In stock

Quantity

Option & accessories

DAkkS certificate (option)
verification MI (option)
protective working cover, scope of delivery: 5 items, YBA-A06S05
draft shield rear panel with integrated ionizer to neutralise electrostatic charge. Is fitted in place of the existing glass rear panel of the draft shield. Suitable for all models in the ABP range, please order at the time you order your balance, the scope of delivery is the rear panel, ionizer, power supply. Factory Option, ABP-A01
weighing table to absorb vibrations and oscillations, which would otherwise distort the weighing result, YPS-03
minimum weight of sample, smallest weight to be weighed, depending on the required process accuracy, only in combination with a DAkkS calibration certificate, 969-103
equipment qualification: compliant qualification concept which includes the following validation services, Installation Qualification (IQ), Operating Qualification (OQ), 961-231B
printer 911-013, YKB-01N or YKS-01
