Metallurgical inverted microscope OLM-1

Free Shipping B,L,F,NL,D

€ 3,950.00 € 3,200.00 *Prices are exclusive of VAT

Manufacturer: KERN
Article code: OLM 171

0 star(s) in 0 review(s) Write a review

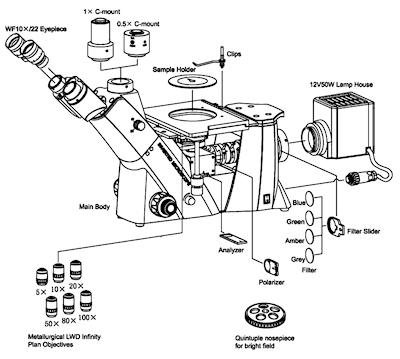

Metallurgical microscope inverted for reflected light, only bright field as well as polarized light for all types of reflective samples without limitation of size. Its narrow but stable design saves space on the work surface and all ergonomically arranged controls provide ease of use and ease of manipulation to the operator. Corrected on the infinite, the Plan objectives restore brilliant , contrasted and sharp images, with a very broad fields in combination with the HWF l0x/22 eyepieces. A large diameter of the eyepiece lenses allow an observation without fatigue. The objectives of 'infinite type' does not influence the image. These objectives are corrected for use without glass covers preparation and thanks to their great working distance, they are particularly suitable for the quality control of surface of the raw materials and the finished products in the industry. These microscopes are not planned for the transmitted light. Microscopes can be equipped with objetives Planachromat 5 X, 10 X, 20 X, 40 x, 50 X and 80 x. They have standard output picture for filming by camera.

powerful illumination lamp halogen 50W continuously adjustable ensures the optimum illumination of the materials to be tested.

as standard, the OLM range is fitted with a trinocular eyepiece tube.
a simple polarising unit (analyser and polariser) is included with delivery.
a large mechanical stage is included with delivery as standard. The coarse and fine focusing knob on both sides guarantees optimal adjustment and focusing.
further options such as, for example, a large selection of objectives can be integrated as accessories.
a dust cover as well as user instructions are included with the delivery.

Trinocular head

Siedentopf type inclined at 30 °.
diopter adjustment on the 2 eyepieces.
adjustable interpupillary distance between 48 and 76 mm.
distribution of the path of the rays 100: 0

Stand

cast aluminum body for very good rigidity and stability.
stable with coaxial focus control macrometric and micrometric lowered for better ergonomics.
macroscopic stroke 10 mm, microscopic: 1 turn = 0.2 mm.
micrometric adjustment graduated in 0.002 mm
adjustable movement brake
revolver: for 5 objectives, mounted on ball bearings with internal 'click' stop for a soft and ergonomic rotation.

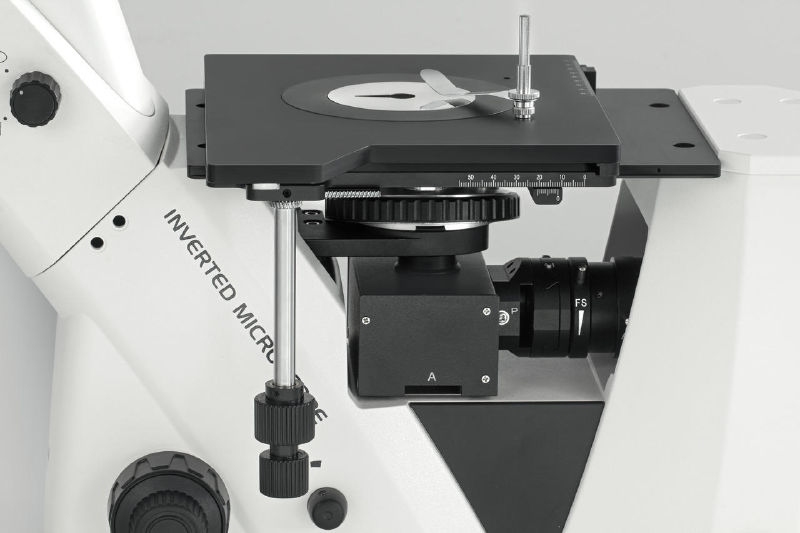

Mechanical stage

type 'flat top', 210x180 mm
travel: 50x50 mm
low-profile coaxial control
removable turntable & clamps

Reflected light lighting

Köhler halogen illumination 12 volt 50 watt incorporated with iris aperture and field diaphragms.
for reflected light illumination in bright background light and simple polarized light.
pre-centered lamp with a matt neutral filter and a collecting lens.
light blue filter LB100 mounted on slide

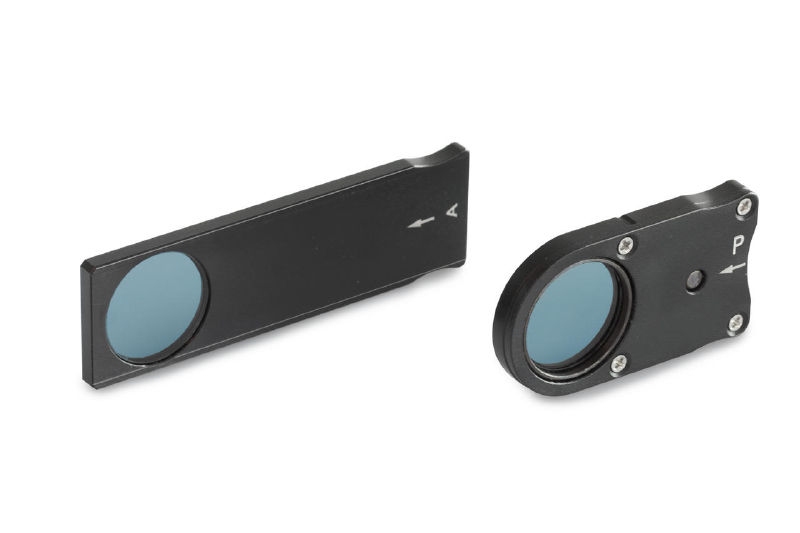

polarization unit with analyzer and rotating polarizer
On/Off + continuous regulation by rheostat integrated in the base of the stand
power supply built into the stand with automatic adaptation to mains voltage (100 ~ 240 Vac).

Eyepiece

1 eyepiece large field HWF l0x / 22, diameter Ø 30 mm, non adjustable
1 eyepiece large field HWF l0x / 22, diameter Ø 30 mm, with reticle, graduation 0.1 mm
2 eyecups

Objectives (magnification / numerical aperture / working distance)
