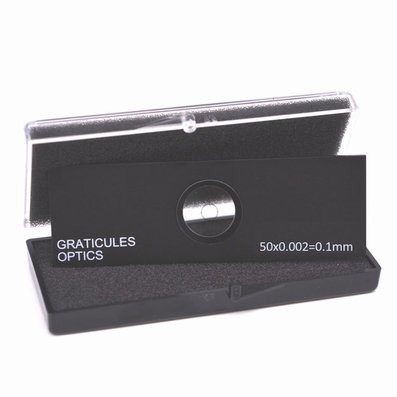

Stage micrometer transmitted light S12, 0.1/0.002 mm

Stage micrometer transmitted light S12, 0.1/0.002 mm
Stage micrometer transmitted light S12, 0.1/0.002 mm
Stage micrometer transmitted light S12, 0.1/0.002 mm
€ 269.00 *Prices are exclusive of VAT
Manufacturer:  Graticules Optics
Article code:  02A00408
0 star(s) in 0 review(s) Write a review
  • transmitted light calibration slide

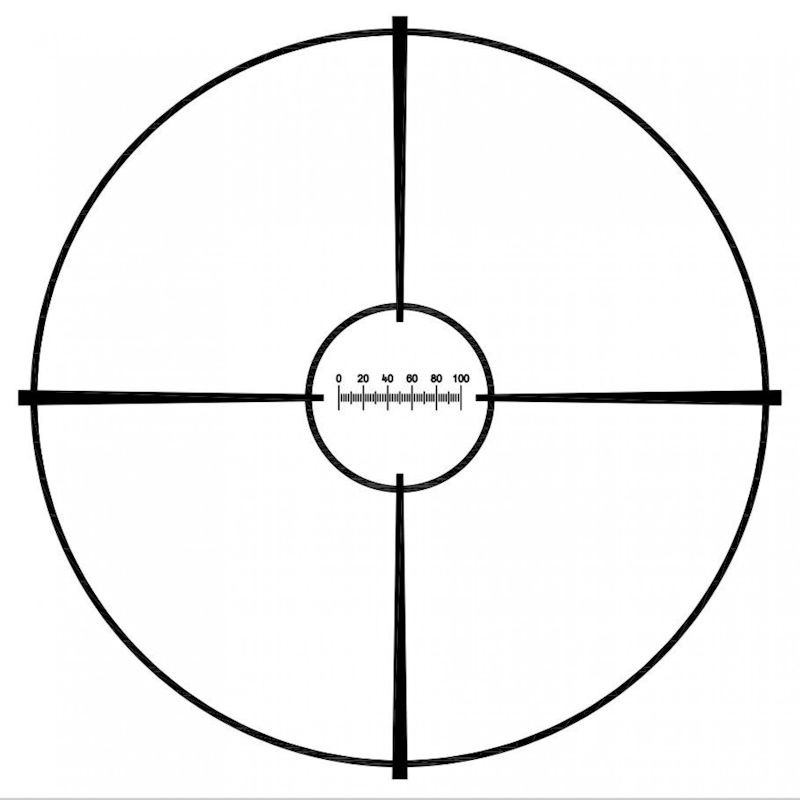

  • 0.1 mm length scale subdivided into 50 divisions (0.002 mm)
  • line thickness: 0.001 mm +0,00025/-0.0005 mm
  • scale length tolerance: +/-0.001 mm
  • divisional marker lengths: 0.02/0.01/0.006 mm
  • glass type and thickness: B270 1 mm thick
  • orientation: correct on top surface
  • black anodised aluminium slide
  • dimensions 76x25x1.5 mm
  • delivered in a plastic case
