2-axis high precision digital level DWL3000,0.01°/bluetooth

2-axis high precision digital level DWL3000,0.01°/bluetooth
2-axis high precision digital level DWL3000,0.01°/bluetooth
2-axis high precision digital level DWL3000,0.01°/bluetooth
2-axis high precision digital level DWL3000,0.01°/bluetooth
2-axis high precision digital level DWL3000,0.01°/bluetooth
2-axis high precision digital level DWL3000,0.01°/bluetooth
€ 1,011.00 *Prices are exclusive of VAT
Article code:  DWL3000XY BT

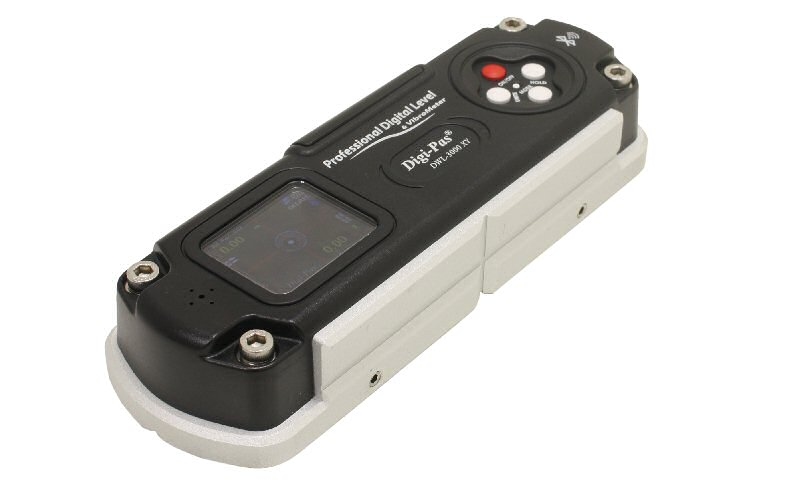

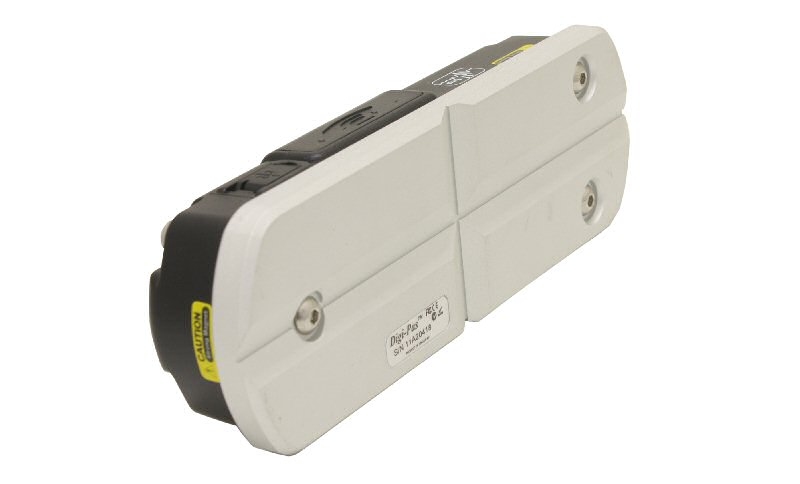

DWL-3000XY is a 2-Axis Precision digital level with built-inVibrometer, high accuracy (0.01° or 175µm/M or 36 arcsec) and wide measuring range (180.00°) for leveling, angle, alignment & vibration measurements, and capable of real-time USB/wireless Bluetooth data acquisition & logging.
It is designed to greatly simplifying the task of professionals & tradesmen in installation, setting up and maintenance of high precision CNC machines, test/measuring instruments & alignment-sensitive equipment.

Specification
  • Measuring range from        0° ~ ±90° Single-axis
                                   0° ~ ±15° Dual-axis
  • Resolution of                0.01° (0.175 mm/M)
  • Accuracy                        ± 0.01° at 0° to 10.00°
                                   ± 0.03° at other angles
  • Repeatability                0.01° (175µm/M)
  • Cross Axis Error                Negligible (± 0.0025°)
  • User Self Calibration        Yes
  • Vibrometer (Relative g)        1.0
  • Digital colour graphic display of Dual angles
  • Power Supply                4 X AAA 1.5V batteries / USB
  • VibroMeter Display real time vibration graph
  • AngularMeter Display real-time angle graph
  • Basic PC Sync software USB connection (5 Meters) to device for remote data logging
  • Professional PC Sync Software USB connection to device for remote data logging (optional)
  • Wireless Bluetooth Class 1 connection (approx. 30 Meters) from PC to device
  • Operating temperature at -10°C to +50°C
  • Material                        ABS / Aluminium
  • Dimension (mm)                188 x 62 x 37
  • Nett Weight (Approx.)        580 gram

Feature
  • DUAL ANGLE DISPLAY: Dual-Axis (X-Y) colour graphic display of angular & vibration measurements real-time digital & analog display for angles & vibration monitoring, data logging & analysis
  • HIGH PRECISION ANGLE MEASUREMENT: Very High resolution of 0.01°(175 µm/M) angular measurement. Wireless Bluetooth/USB PC links for remote data logging capability. Graphical display of real-time measuring data on device TFT LCD screen
  • VIBROMETER: Built-in Vibrometer for real-time vibration monitoring, data logging & analysis. Graphical display of real-time measuring data on device TFT LCD screen.
  • ANGLEMETER: Built-in Anglemeter for real-time Angle monitoring, data logging & analysis. Graphical display of real-time measuring data on device TFT LCD screen.
  • ALTERNATE ZERO SETTING: Enable user to measure relative angles at a common plane with respect to a reference angle. The reference angle can be set using alternate zero feature.
  • ABSOLUTE LEVEL SETTING: Enables user to perform absolute symmetry readings for both "front" & "reverse" (180 degrees) positions of any measurement angle.
  • USB LINK TO PC: USB connection for remote acquisition, monitoring, data logging & analysis in computer.
  • WIRELESS SYNC: Wireless connection (Bluetooth class 1) to device for remote monitoring, data logging & analysis from computer. (PRO PC sync software is required)
  • PC SYNC SOFTWARE - BASIC EDITION: Enable basic features for Remote Data Acquisition on Angular & Vibration Measurements.
  • PC SYNC SOFTWARE - PROFESSIONAL EDITION (OPTIONAL): Enable advance features for remote data logging, processing & analysis on angular & vibration measurements. Specifically for precision machine operation performance optimization.
  • Certificate: accuracy is verified by accredited 3rd party calibration & test service providers in USA, Japan, UK & Germany to conform with NIST, JIS, UKAS & DIN under ILAC & A2LA.

Scope of supply
  • electronic level DWL-3000XY
  • USB cable 5m
  • PC Sync program, basic edition
  • calibration certificate
  • carrying case
  • manual
Benefit
  • SPEED & PRECISION: Instant 2-Axis concurrent digital display of high resolution 0.01°(175 µm/M) of levelling & vibration measurements for time saving and quality professional works.
  • CLARITY: Digital colour graphic & numeric display to enable real-time collection & storage of digital angle/levelling/alignment/surface profile data for machine commissioning accountability & analysis.
  • EFFECTIVE: The remote reading Wireless/USB Cable capability via PC/Tablet/Smartphone providing advantages that traditional single-axis spirit level or single-axis digital level is difficult or unable to match. i.e. effectively, only one person is required to level/align a machine.
  • ACCREDITATION: Instrument accuracy is verified by accredited 3rd party Calibration & Test bodies and National Metrology Centre of Singapore traceable to SI standard and NIST, JIS, UKAS & DIN under CIPM MRA.
