Roughness tester parameters

€ 1,985.00 € 1,278.00 *Prices are exclusive of VAT

Article code: 502.302

0 star(s) in 0 review(s) Write a review

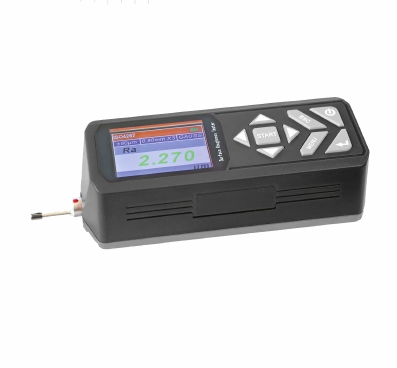

High performance pocket roughness meter with interchangeable probes, allows measurement of 13 roughness parameters and graphic display, with filters and output for data printing.

very complete instrument
easy-to-use menu control.
alphanumeric and graphic display on large LCD screen.
measurement of 16 different roughness parameters.
indication of the stylus position.
internal memory
compatible with international standards ISO, DIN, ANSI, JIS
Advanced Li-ion batteries - fast charging.

Technical characteristics

measurement: Ra, Rz (JIS), Ry (JIS), Rq, Rx, Rt, Rmax, Rp, Rv, R3z, R3y, Rz (JIS), RSk, Rku, RSm, Rmr
measuring range: max Z axis 160 µm, X axis: 17.5 mm
measurement units: mm, inch
range: Ra, Rq: 0.005~16.0 µm
Rz, R3z, Ry, Rp, Rm: 0.02~160 µm
Sk: 0~100%
Rs, Rsm: 1 mm
Tp: 0~100%
scales/resolution: ±20 µm: 0.01 µm
±40 µm: 0.02 µm
± 80 µm: 0.04 µm
cut-off Ic 0.25 / 0.8 / 2.5 mm
Im measuring stroke: 1~5 x cut-off.
palpation stroke lt: 1~5 x cut-off + 2 cut-off (1.3 ~ 17.5 mm)
measurement accuracy: <± 10%
probe speed: Ir = 0.25 mm, 0.135 mm / sec
Ir = 0.8 mm, 0.5 mm / sec
Ir = 2.5 mm, 1 mm / sec
type of sensor: interchangeable inductive.
probe: diamond, angle 90 °, radius 5 µm.
measuring pressure: <4 mN
support pad: longitudinal, radius 40 mm
available functions: indication of the stylus position
indication of the battery charge level
direct display of parameters and profiles
direct printing
backlight level adjustment
automatic shutdown with memory after 5 minutes
calibration by program (for each scale)
digital filters: RC, PC-RC, Gauss, ISO 13565

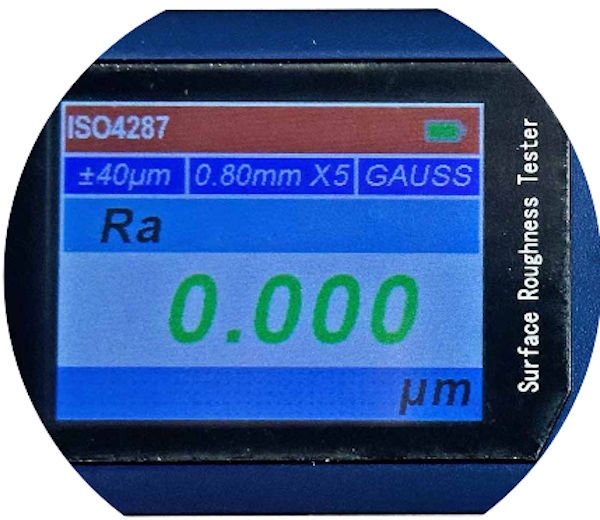

display: LCD 50x30 mm, text and graphic 128 × 64 dots, with backlight.
interface: USB
power supply: rechargeable Li-ion 5 V / 800 mAh batteries
charger: 220 V, 50 Hz / 5 Vdc via USB
measurement autonomy: ± 20 h
memory: 100 measurements
operating temperature: -10 ° C ~ 50 ° C for a humidity of 30 ~ 80%
device dimensions: 141 x 55 x 40 mm
weight: 400 gr.

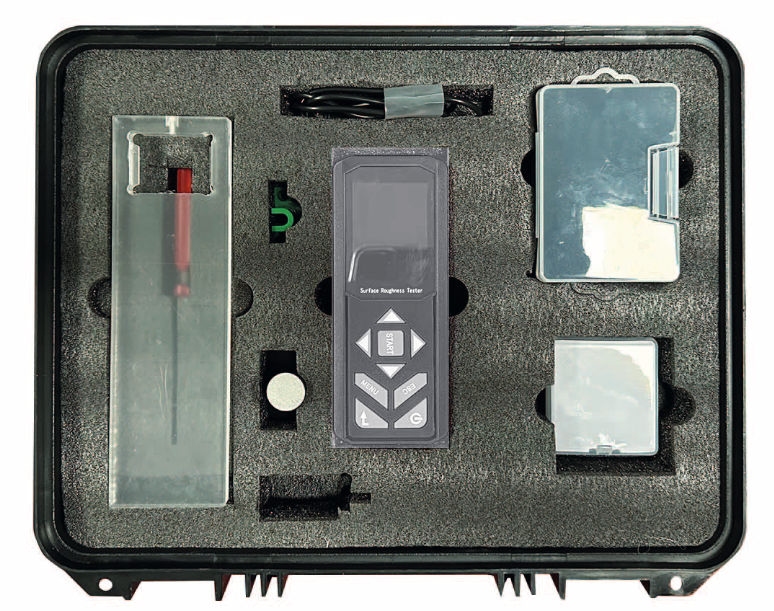

Scope of delivery

main unit
measuring probe
roughness calibration insert
steel leveling stand for stand-alone use.
screwdriver
transport case.
240 V ac / 5 V dc charger
user manual (D, E, F)
factory certificate
