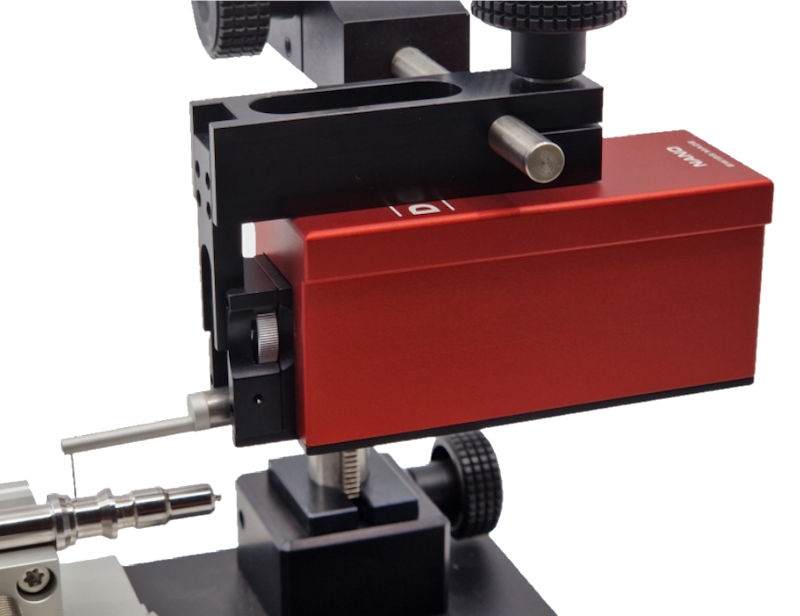

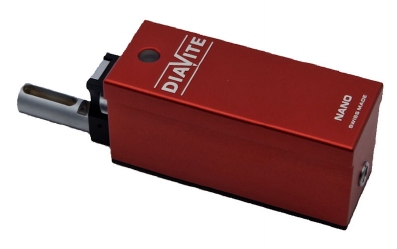

Roughness tester Nano VH, integrated motor unit, tracer SH

Hall technology, the most precise portable model on the market, compact

Roughness tester Nano VH, integrated motor unit, tracer SH
Roughness tester Nano VH, integrated motor unit, tracer SH
Roughness tester Nano VH, integrated motor unit, tracer SH
Roughness tester Nano VH, integrated motor unit, tracer SH
€ 4,275.00 *Prices are exclusive of VAT
Article code:  NANO/VH
0 star(s) in 0 review(s) Write a review
The Diavite Nano is a simplified version of the DH-9 with the same measurement capabilities, but for use from a PC, laptop or tablet.
  • versatile measuring device that meets all requirements in the workshop and measuring room.
  • from simple roughness measurement without accessories directly on the machine to measurements in the measuring room with a stand, special probes, etc.
  • accessories up to contour detection.
  • can solve demanding measuring tasks without any problems using optional PC programs. The DIAVITE NANO offers the greatest possible flexibility in assessing surface quality.
  • ultra-linear and ultra-compact hall effect measurement sensor.
  • delivered with integrated feed device VH for probe with skid only
  • automatic calibration with storage of max. 8 different probes
  • display of the tolerance in case of exceeding the measured values
  • saving of the measurement conditions including the test report (format: pdf, csv, txt)
  • large selection of probes to solve your specific measurements
  • simple programming menu in several languages
  • delivered as standard with DIAVITE App regular program

Technical characteristics
  • roughness measurement
    * ISO 21920: Ra, Rz, Rt, Rq, Rsk, Rk, Rp, Rpt, Rv, Rvt, Rpk, Rvk, Rpc, Rmr, Rdl, Rsm,
    * ISO 4287 / 13565: Ra, Rz, Rmax, R3z, Rt, Rq, Rsk, Rk, Rp, Rv, Rpk, Rvk, MR1, MR2, RPc, C1, C2, Rmr, C0, Cz, V0, Rdg, RL0, Rsm
    * ISO 12085: R, AR, Rx
  • profile measurement
    * ISO 21920: Pa, Pz, Pt, Pq, Pmr, Ppc
    * ISO 4287 / 13565: Pa, Pz, Pt, Pq, Pmr, PPc, Pmax
  • Measuring range
    * Ra, Rq: 0~20.00 µm, 0~800 µinch - DIN/ISO
    * other parameters: 0.00~350.0 µm, 0~14.000 µinch
  • resolution all parameters: 0.01 µm
  • adjustable measuring length: 0.48~16 mm
  • measuring range in Z: approx. 450 µm
  • cutoff Ic: 0.08 / 0.25 / 0.8 / 2.5 mm
  • total stroke It: 0.48 / 1.50 / 4.8 / 15.0 mm
  • measuring stroke Im: 0.40 / 1.25 / 4.0 / 12.5 mm
  • linearity: < 2 % over the entire measuring range
  • standard probe: diamond tip, radius 5 µm, angle 90° (option 2 µm, 60°)
  • standard pad radius: 25 mm
  • speed
    * measuring: 0.25 / 0.5 / 1.0 mm/s
    * return 1.0 mm/sec.
  • measuring force
    * of the diamond in static < 0.75 mN
    * of the pads supports < 0.15 N
  • indication of the correct position of the probe
  • automatic calibration procedure on the Ra based on 4 probes
  • bidirectional USB-C interface for
    * possibility of transferring results, curves and evaluation of additional parameters
    * control and adjustment of all DIAVITE parameters, allows the automation of the measurement
  • conditions of use: temperature +10 ~ 40°C, humidity <80% non-condensing.
  • dimensions 148 x 40 x 47 mm
  • weight 0.700 kg.

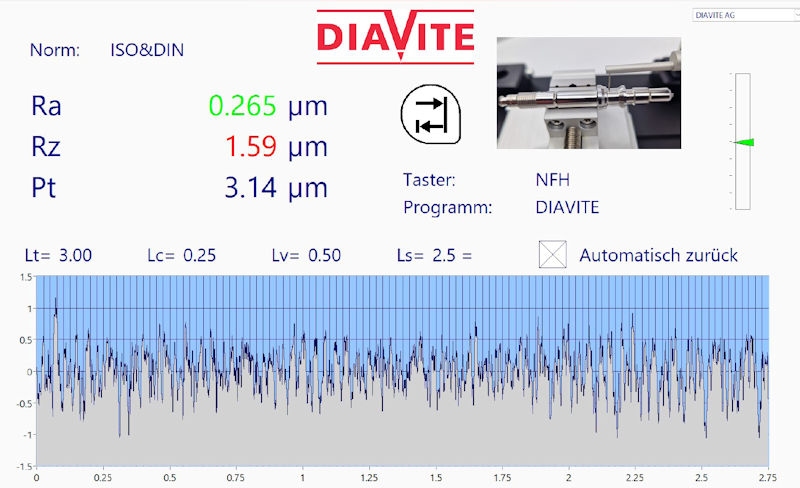

DIAVITE App regular program
  • measuring programs for PC or Windows touch pad, protocols, data export in TXT, CSV, PDF to DIASOFT
  • optionally available: module for thermal printer, module for W parameters
  • interactive menus in multiple languages: German, English, French, Italian, Spanish, Polish, Chinese
Scope of delivery
  • roughness tester with integrated VH DIAVITE NANO power supply
  • standard probe SH
  • metal standard Ra = 3.00 µm
  • USB communication and charging cable
  • screwdriver
  • instruction manual
  • USB stick with DIAVITE App regular software and operating instructions
  • case
  • factory calibration and delivery protocol
Not included: PC, laptop or tablet!

Accessories
  • probes with pads for various applications
  • extensions => 1000 mm
  • calibration/adjustment standards without or with certificate
  • stand and support for measuring on small part

Accessoiries

Tracer with skid for axis and knives AH

Tracer with skid for axis and knives AH
for VH/VHF

€ 1,517.00
Tracer with skid BH for bore from Ø 2,5 mm, 2 µm/60°

Tracer with skid BH for bore from Ø 2,5 mm, 2 µm/60°
for VH/VHF

€ 1,390.00
Tracer with skid BH for bore from Ø 2,5 mm, 5 µm/90°

Tracer with skid BH for bore from Ø 2,5 mm, 5 µm/90°
for VH/VHF

€ 1,215.00
Tracer KKH with skid, concave/vex surface, 4 mm, 5 µm/90°

Tracer KKH with skid, concave/vex surface, 4 mm, 5 µm/90°
for VH/VHF

€ 1,432.00
Tracer KKH with skid for concave/vex measurement, 5 µm/90°

Tracer KKH with skid for concave/vex measurement, 5 µm/90°
for VH/VHF

€ 1,607.00
Tracer KKH with skid, concave/vex surface, 8 mm, 5 µm/90°

Tracer KKH with skid, concave/vex surface, 8 mm, 5 µm/90°
for VH/VHF

€ 1,432.00
Tracer NH with skid for slot 15 mm, 2 µm/60°

Tracer NH with skid for slot 15 mm, 2 µm/60°
for VH/VHF

€ 1,342.00
Tracer NH with skid for slot 15 mm, 5 µm/90°

Tracer NH with skid for slot 15 mm, 5 µm/90°
for VH/VHF

€ 1,167.00
Tracer NH with skid for slot 20 mm, 5 µm/90°

Tracer NH with skid for slot 20 mm, 5 µm/90°
for VH/VHF

€ 1,273.00
Tracer with skid for transversal measurement QH, 5 µm/90°

Tracer with skid for transversal measurement QH, 5 µm/90°
for VH/VHF

€ 1,597.00
Tracer QKKH with skid for transversal measurement , 5 µm/90°

Tracer QKKH with skid for transversal measurement , 5 µm/90°
for VH/VHF

€ 1,671.00
Standard tracer with skid SH2, r=2 µm

Standard tracer with skid SH2, r=2 µm
for VH/VHF

€ 1,071.00
Standard tracer with skid SH, r=5 µm

Standard tracer with skid SH, r=5 µm
for VH/VHF

€ 896.00
Tracer UH with skid for circumference- and ball , 5 µm/90°

Tracer UH with skid for circumference- and ball , 5 µm/90°
for VH/VHF

€ 1,867.00
Extention tube for tracer L=50 mm

Extention tube for tracer L=50 mm

€ 350.00
Extention tube for tracer L=70 mm

Extention tube for tracer L=70 mm

€ 366.00
Extention tube for tracer L=100 mm

Extention tube for tracer L=100 mm

€ 387.00
Extention tube for tracer L=150 mm

Extention tube for tracer L=150 mm

€ 414.00
Extention tube for tracer L=200 mm

Extention tube for tracer L=200 mm

€ 440.00
Extention tube for tracer L=300 mm

Extention tube for tracer L=300 mm

€ 493.00
Extention tube for tracer L=500 mm

Extention tube for tracer L=500 mm

€ 599.00
Extention tube for tracer L=700 mm

Extention tube for tracer L=700 mm

€ 705.00
Extention tube for tracer L=750 mm

Extention tube for tracer L=750 mm

€ 732.00
Tracer with skid for gear tooth flanks ZH, 5 µm/90°

Tracer with skid for gear tooth flanks ZH, 5 µm/90°
for VH/VHF

€ 1,220.00
