Roughness tester Micro VHF, external motor unit, tracer SH

for tracers with and without skid

€ 3,586.00 *Prices are exclusive of VAT

Article code: MICRO/VHF

0 star(s) in 0 review(s) Write a review

Roughness measuring devices from DIAVITE AG have long been THE STANDARD for surface measurement in many companies. Each new measuring task is analyzed for its feasibility and an individual solution tailored to the customer's needs is developed together with the customer. This includes, for example, the design of custom probes and software adaptations. The measuring systems from DIAVITE AG have already proven themselves in many areas of industry thanks to their flexible application possibilities, from quality control to measurements in series production. Within seconds, they provide accurate, repeatable measurements on almost any material – whether metals, glass, ceramics, semiconductors or polymers.

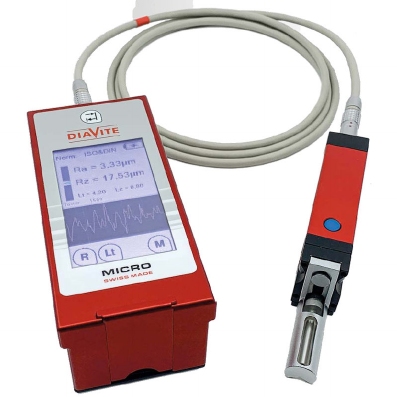

high-precision roughness measuring device for use in the workshop or control room
ultra-linear and ultra-compact hall effect measurement sensor.
delivered with external VHF advance device for probe with or without skid for almost all measuring tasks
graphic touch screen
memory for measurement profiles
automatic calibration
memory for calibrating 3 different probes

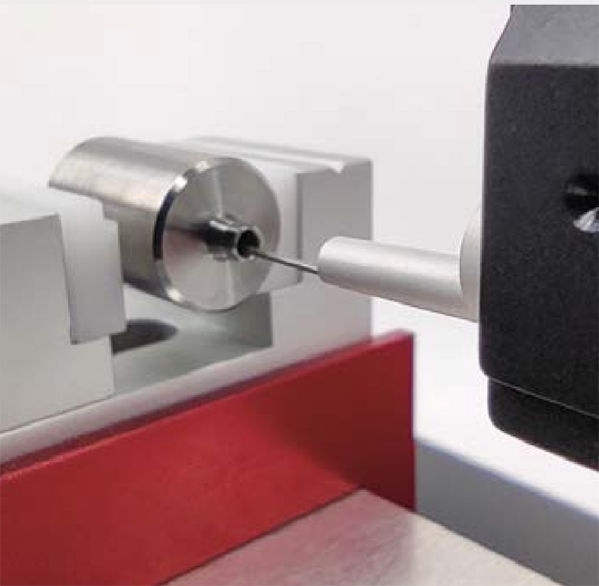

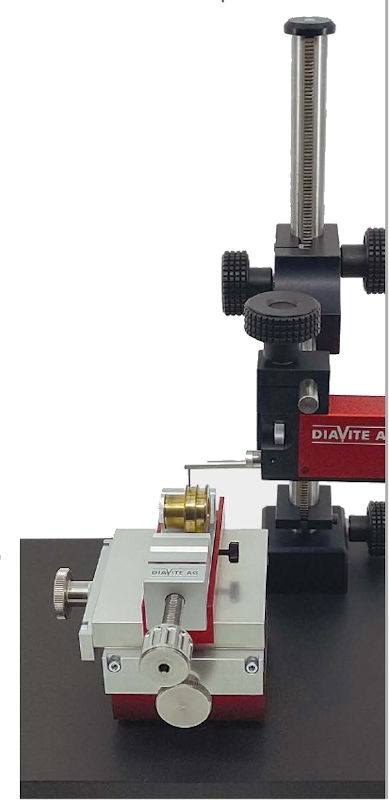

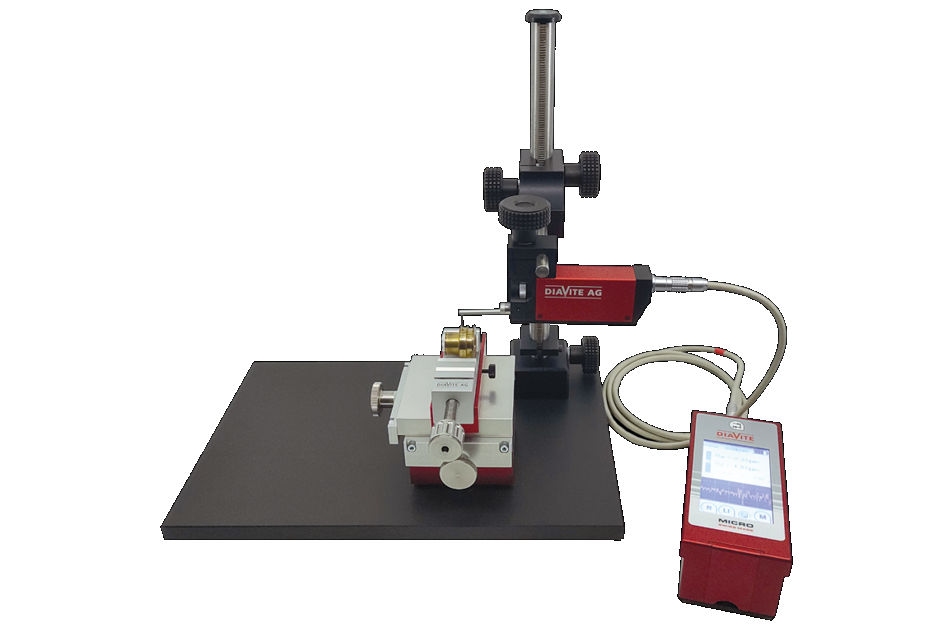

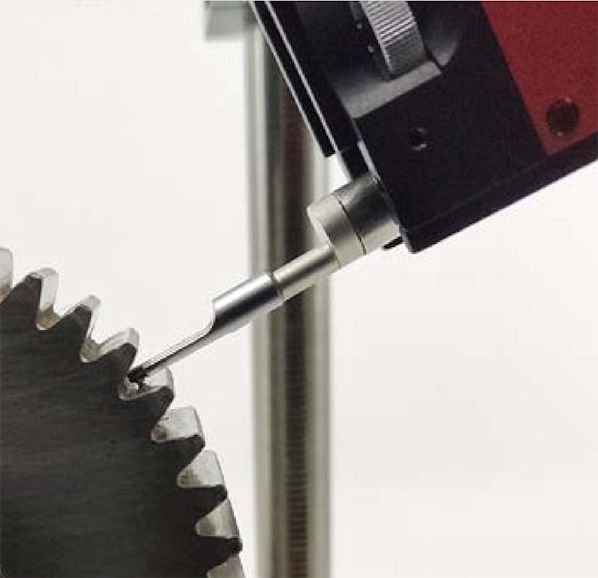

measuring stand for different applications with skidless probes
large choice of probes to solve your specific measurements
simple programming menu in several languages
delivered as standard with program for data transfer DIAVITE App Light
accessories for many applications

Technical characteristics

roughness measurement
* ISO 21290: Ra, Rz, Rt, Rzmax, Rp, Rv, Rsm, Rq
* ISO 4287: Ra, Rz, Rt, Rmax, Rp, Rv, Rsm, Rq
* ISO 12085: R, AR, Rx
* additional parameters with DIASOFT basic/standard/Automotive/Expert software (depending on program): Ra, Rq, Rv, Rp, Rt, Sm, Rsk, Rku, Rz, RTp, RHTp, RDq, RPc, RLq, Rlo, RzJIS , R3z + ….
measuring range
* Ra, Rq: 0~20,000 µm, 0~800 µinch - DIN/ISO
* other parameters: 0~350.00 µm, 0~14.000 µinch
resolution all parameters: 0.01 µm
adjustable measuring length: 0.48~16 mm
measuring range in Z: approx. 450 µm
cutoff Ic: 0.08 / 0.25 / 0.8 / 2.5 mm
total stroke It: 0.48 / 1.50 / 4.8 / 15.0 mm
measuring stroke Im: 0.40 / 1.25 / 4.0 / 12.5 mm
linearity: < 2 % over the entire measuring range
standard probe: diamond tip, radius 5 µm, angle 90° (option 2 µm, 60°)
standard shoe radius: 25 mm
speed:
* measurement: 0.5 mm/sec
* back 1.0 mm/sec.
measuring force
* of diamond in static < 0.75 mN
* pad supports < 0.15 N
indication of correct probe position
automatic calibration procedure on the Ra based on 4 probes + memorization of a maximum of 8 calibrations for 8 different probes.
power supply: rechargeable batteries + supply/recharge via USB interface
internal real time clock with date/time & indication on each print.
bi-directional USB interface for
* possibility of transfer of results, curves and evaluation of additional parameters
* control and adjustment of all the DIAVITE parameters, allows the automation of the measurement
* battery charge
interactive menus in 6 languages: French, English, German, Italian, Spanish & Polish.
conditions of use: temperature +10 ~ 40°C, humidity <80% non-condensing.
dimensions 150 x 60 x 45mm
weight 0.700 kg.

DIAVITE App light program

data transfer program between the DIAVITE and a PC
choice of language (E, F, D, I)
setting the parameters of the USB link
transfers current measurements with choice of roughness parameters Ra, Rt… or in an existing file
transfers measurements in memory in the DIAVITE with choice of roughness parameters Ra, Rt… or in an existing file
impression
histogram
