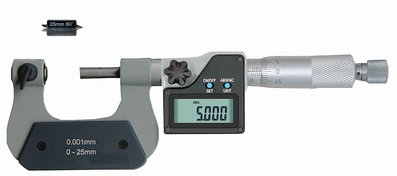

Universal micrometer D for thread 50~75 mm

Universal micrometer D for thread 50~75 mm
€ 378.00 244.00 *Prices are exclusive of VAT
Article code302.193.D
  • non-rotating spindle Ø 6.5 mm
  • bore for thread insert Ø 5 mm
  • measuring range: 50~75 mm
  • resolution: 0.001 mm
  • accuracy: 0.010 mm
  • 1 revolution of the thimble = 0.5 mm
  • non rotating spindle Ø 6.5 mm
  • functions: On/Off, ABS/INC UNIT & SET
  • data output RB4.1
  • power supply: 1 battery 1.5 V LR 44
  • delivered in case/box with adjustment key & setting standard (60°) but without thread inserts

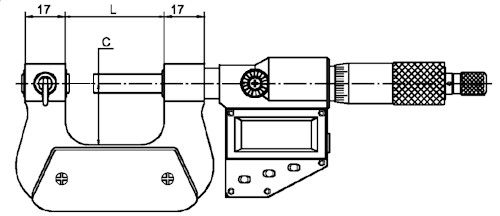

  • dimensions: C=50, L=92 mm

Option & accessoire
  • calibration certificate VDI/VDE/DGQ 2618 from a DAkkS' labo
  • USB interface with program and connection cable for RB4.1 (220.272)
  • sets metric insert 60° (309.090.x)
  • sets insert withworth 55° (309.091.0)
  • universal insert sets (309.088.x)
  • setting standard
