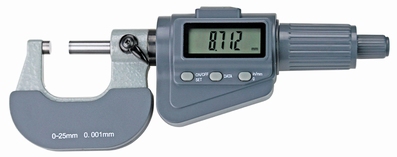

Outside digital micrometer, Ø6.5 mm, 0.5 mm, 0~25 mm

DIN 863, data

Outside digital micrometer, Ø6.5 mm, 0.5 mm, 0~25 mm
Outside digital micrometer, Ø6.5 mm, 0.5 mm, 0~25 mm
Outside digital micrometer, Ø6.5 mm, 0.5 mm, 0~25 mm
€ 108.00 € 70.00 *Prices are exclusive of VAT
Article code:  302.074
0 star(s) in 0 review(s) Write a review
  • measuring range: 0~25 mm
  • resolution: 0,001 mm
  • 1 revolution of the thimble: 0.5 mm
  • tungsten carbide measuring faces: Ø 6.5 mm
  • accuracy according to DIN 863
  • functions: On/Off/Set, Data, mm/inch
  • with ratchet
  • frame coated, thermally insulated
  • power supply: 1 battery 3V long period
  • with data output type RB6 (Mitutoyo compatible)
  • delivered in case/box with adjustment key

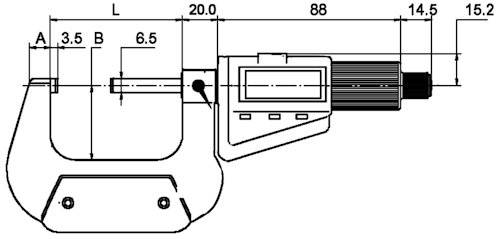

  • dimensions: A=6, C=26.5, L=32.5 mm

Option & accessories
  • calibration certificate VDI/VDE/DCGQ 2618/8 DIN 862 establish by an independent German laboratory certified DaKKS
  • USB interface incl. software  (220.281)
  • foot switch for USB interface (220.255)

Option & accessories

VDI/VDE/DGQ certificate for micrometer => 25 mm

VDI/VDE/DGQ certificate for micrometer => 25 mm

€ 18.30
DAkkS certificate for micrometer => 25 mm

DAkkS certificate for micrometer => 25 mm

€ 32.50
Micrometer holder => 100 mm

Micrometer holder => 100 mm

€ 37.60 € 25.00
Micrometer holder => 300 mm

Micrometer holder => 300 mm

€ 30.40 € 20.00
Micrometer holder => 200 mm

Micrometer holder => 200 mm

€ 48.60 € 32.00
Digital display for 1 axle with connector RB6

Digital display for 1 axle with connector RB6

€ 90.30 € 59.00
USB interface for capacitive caliper with RB6/7

USB interface for capacitive caliper with RB6/7
English keyboard, point

€ 208.00 € 134.00
Bluetooth transmission module for RB6 measuring instruments

Bluetooth transmission module for RB6 measuring instruments

€ 110.00 € 71.00
Connection cable RB6 to interface 220.281.1 (.1D), 1 m

Connection cable RB6 to interface 220.281.1 (.1D), 1 m

€ 35.70 € 23.00
