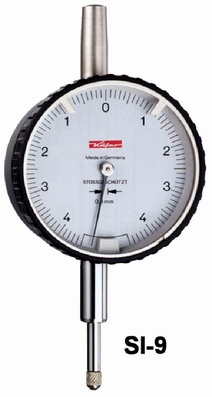

Mechanical dial gauge SI-9/0.1, 8/ 8/0.1 mm, Ø58 mm

Mechanical dial gauge SI-9/0.1, 8/ 8/0.1 mm, Ø58 mm
55.40 *Prices are exclusive of VAT
Article code10144
Error free dial gauge: in order to avoid reading errors the measuring range of these dial gauges is limited to slightly less than one revolution of the pointer. Therefore a measurement can only be performed within the range of one revolution of the hand guaranteeing error free reading of the dial gauge.
  • reading: 0.1 mm
  • overtravel: -
  • range: 8 mm
  • graduation: 4~0~4 mm
  • Ø bezel: 58 mm
  • Ø stem: 8h6
  • metal casing, bezel made of polyamide
  • rotating dial
  • flat back (removable)
  • stem and spindle made of resistant stainless steel
  • protection category: IP40
  • dimensions: according to DIN EN ISO 463
  • accuracy: according to manufacturing standard 0.0100.9.0004
  • weight: 164 g
  • delivered in box with removable standard contact point, steel Ø 3 mm, M2,5

Options and special fittings
  • calibration certificate
  • tolerance indicators
  • back: magnetic, lug or special
