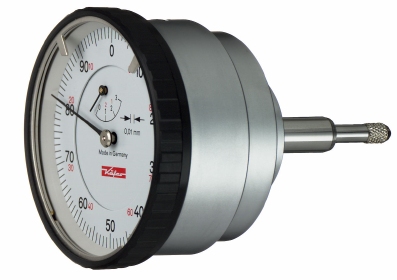

Mechanical dial gauge M10/5R, 5/5/0.1 m, Ø58mm, back plunger

With back plunger

Mechanical dial gauge M10/5R, 5/5/0.1 m, Ø58mm, back plunger
€ 108.00 *Prices are exclusive of VAT
Article code:  10241
With back plunger
  • reading: 0.1 mm
  • range: 5 mm
  • range per pointer resolution: 5 mm
  • Ø bezel: 58 mm
  • Ø stem: 8h6
  • metal casing, bezel made of polyamide
  • rotating dial
  • stem and spindle made of resistant stainless steel
  • protection category: IP40

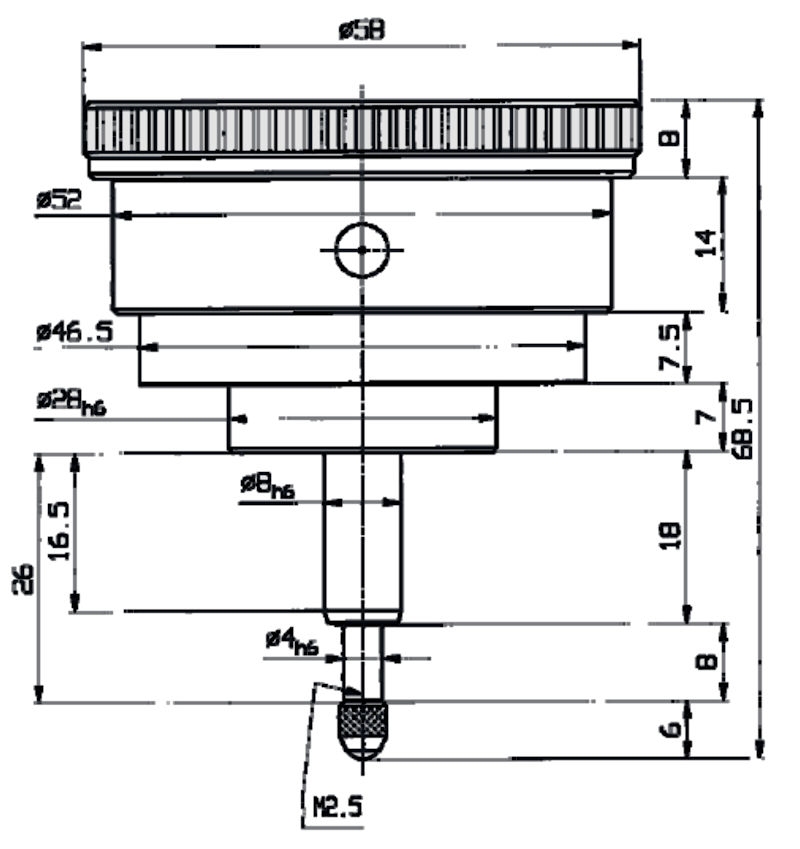

  • dimensions: according to DIN EN ISO 463
  • accuracy: according to manufacturing standard 0.0100.9.0004
  • weight: 282 g
  • delivered in box with removable standard contact point, steel Ø 3 mm, M2,5

Options and special fittings
  • calibration certificate
  • counter clockwise dial reading
  • increased measuring force
  • tolerance indicators

Option

Factory certificate DIN 878 dial gauge, 0.1 mm, => 10 mm

Factory certificate DIN 878 dial gauge, 0.1 mm, => 10 mm
Option

€ 8.00
Glare free cover for dial gauges Ø 40 or 58 mm

Glare free cover for dial gauges Ø 40 or 58 mm
Option

€ 6.20
Fixing screw for the bezel for dial gauges Ø 40 or 58 mm

Fixing screw for the bezel for dial gauges Ø 40 or 58 mm
Option

€ 10.90
Lifting lever for dial gauge Ø58 mm, travel ≤ 15 mm

Lifting lever for dial gauge Ø58 mm, travel ≤ 15 mm
Accessorie

€ 6.60
Lug back horizontal for dial gauges ≥ Ø58 mm, bore Ø5 mm

Lug back horizontal for dial gauges ≥ Ø58 mm, bore Ø5 mm
Accessorie

€ 4.30
Lug back vertical for dial gauges ≥ Ø58 mm, bore Ø5 mm

Lug back vertical for dial gauges ≥ Ø58 mm, bore Ø5 mm
Accessorie

€ 4.80
Maximum slave pointer for dial gauges Ø 40 or 58 mm

Maximum slave pointer for dial gauges Ø 40 or 58 mm
Accessorie

€ 24.80
