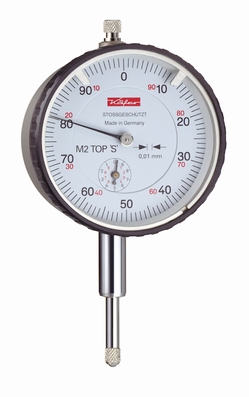

Mechanical dial gauge M2TOP-S,10/1/0.01 mm, Ø58 mm

Patented economical mechanism & shockproof

€ 43.00 € 37.70 *Prices are exclusive of VAT

Article code: 10143

New technological patented production methods enable to market the dial gauges conform to DIN EN ISO 463 / DIN 878at an astonishingly low price.

Shockproof: the high-class impact protection of the dial gauge results in an exceptionally long service life. A gear rack sleeve covering the length of the spindle is arranged and sprung in such a way that the shocks against the measuring insert are not transferred to the measuring gear. The dial gauge is robust in operation. Its precision is maintained with practically no limitations.

reading: 0.01 mm
range: 10 mm
range per pointer resolution: 1 mm
initial measuring force: 0.7 N
Ø bezel: 58 mm
graduation:
* main pointer: 0-100 (100-0) in steps of 1
* small pointer: 0-10 (10-0) in steps of 1
adjustable tolerance indicators to set tolerance limit
Ø stem: 8h6
metal casing, bezel made of polyamide
rotating dial
tolerance indicators
flat back (removable)
stem and spindle made of resistant stainless steel
protection category: IP40
dimensions: according to DIN EN ISO 463
accuracy: according to DIN 878
weight: 180 g
delivered in box with removable standard contact point, steel Ø 3 mm, M2,5
