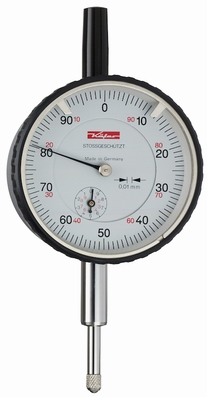

Mechanical dial gauge M2S,10/1/0.01 mm, Ø58 mm

Shockproof & fine adjustment

Mechanical dial gauge M2S,10/1/0.01 mm, Ø58 mm
87.80 *Prices are exclusive of VAT
Article code10016
Shockproof: the high-class impact protection of the dial gauge results in an exceptionally long service life. A gear rack sleeve covering the length of the spindle is arranged and sprung in such a way that the shocks against the measuring insert are not transferred to the measuring gear. The dial gauge is robust in operation. Its precision is maintained with practically no limitations.
Fine adjustment of the pointer: as additional feature this dial gauge offers fine adjustment of the pointer. By simply moving the knurled screw at the top of the dial gauge the large pointer can be set to the required position and without turning the bezel and the outer dial. So the dial gauge can be easily zeroed. Removal of the black protective sleeve allows access to the knurled screw.

  • reading: 0.01 mm
  • range: 10 mm
  • range per pointer resolution: 1 mm
  • initial measuring force: 0.8 N
  • Ø bezel: 58 mm
  • graduation:
    * main pointer: 0-100 (100-0) in steps of 1
    * small pointer: 0-10 (10-0) in steps of 1
  • adjustable tolerance indicators to set tolerance limit
  • Ø stem: 8h6
  • metal casing, bezel made of polyamide
  • rotating dial
  • tolerance indicators
  • flat back (removable)
  • stem and spindle made of resistant stainless steel
  • protection category: IP40
  • dimensions: according to DIN EN ISO 463
  • accuracy: according to DIN 878
  • weight: 180 g
  • delivered in box with removable standard contact point, steel Ø 3 mm, M2,5

Options and special fittings
  • calibration certificate
  • back: magnetic, lug or special
  • lifting device
