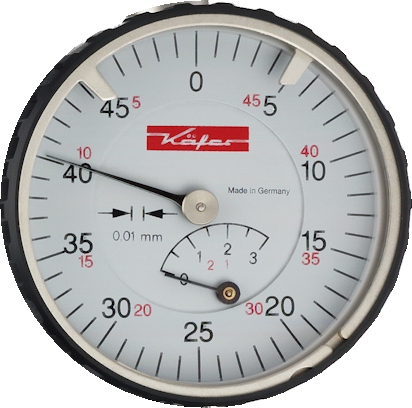

Mechanical dial gauge M2R, 3/1/0.01 mm, Ø58 mm

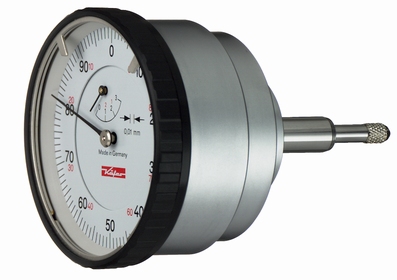

With back plunger

Mechanical dial gauge M2R, 3/1/0.01 mm, Ø58 mm
Mechanical dial gauge M2R, 3/1/0.01 mm, Ø58 mm
Mechanical dial gauge M2R, 3/1/0.01 mm, Ø58 mm
€ 103.00 € 90.40 *Prices are exclusive of VAT
Article code:  10015
With back plunger
  • reading: 0.01 mm
  • range: 3 mm
  • range per pointer resolution: 1 mm
  • initial measuring force: 1.5 N
  • Ø bezel: 58 mm
  • graduation:
    * main pointer: 0-100 (100-0) in steps of 1
    * small pointer: 0-3 (3-0) in steps of 1
  • adjustable tolerance indicators to set tolerance limit
  • Ø stem: 8h6
  • metal casing, bezel made of polyamide
  • rotating dial
  • tolerance indicators
  • stem and spindle made of resistant stainless steel
  • protection category: IP40

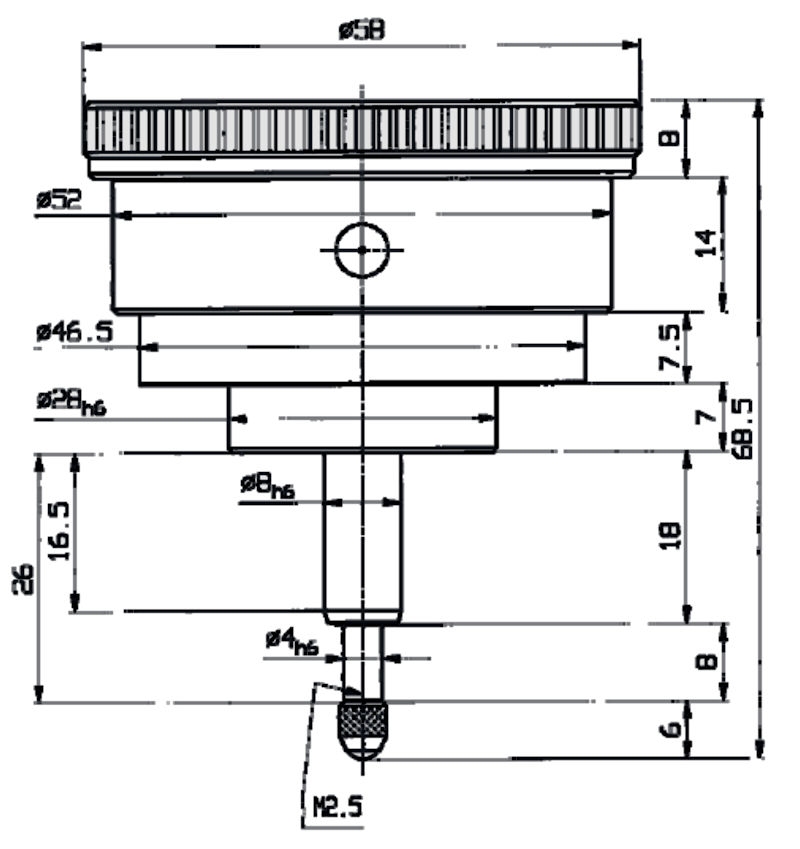

  • dimensions: according to DIN EN ISO 463
  • accuracy: according to manufacturing standard 0.0500.9.0006
  • weight: 272 g
  • delivered in box with removable standard contact point, steel Ø 3 mm, M2,5

Options and special fittings
  • calibration certificate
  • counter clockwise reading
  • balanced dial reading 0-25-0

In stock

Option

Factory certificate DIN 878 dial gauge, 0.1 mm, => 10 mm

Factory certificate DIN 878 dial gauge, 0.1 mm, => 10 mm
Option

€ 8.00
