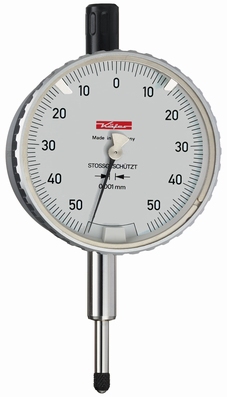

Mechanical dial gauge F/SI-910, 0.1/4.5/0.001 mm, Ø40 mm

Error free dial gauge

Mechanical dial gauge F/SI-910, 0.1/4.5/0.001 mm, Ø40 mm
186.00 *Prices are exclusive of VAT
Article code10233
  • Error free dial gauge: in order to avoid reading errors the measuring range of these dial gauges is limited to slightly less than one revolution of the pointer. Therefore a measurement can only be performed within the range of one revolution of the hand guaranteeing error free reading of the dial gauge.
  • Feinika: the travel of the plunger is transmitted by means of a lever device to the hand. This lever transmission of the movement has two advantages. It provides extremely high accuracy, as well as an effective shockproof system.

Technical specification
  • reading: 0.001 mm
  • overtravel: 3 mm
  • range: 0.1 mm
  • graduation: 50~0~50
  • initial measuring force: 1.5 N
  • Ø bezel: 40 mm
  • Ø stem: 8h6
  • metal casing, bezel made of polyamide
  • rotating dial
  • flat back (removable)
  • stem and spindle made of resistant stainless steel
  • protection category: IP40
  • dimensions: according to DIN EN ISO 463
  • accuracy: according to manufacturing standard 0.0500.9.0010
  • weight: 122 g
  • delivered in box with removable standard contact point, steel Ø 3 mm, M2,5

Options and special fittings
  • calibration certificate
  • back: magnetic, lug or special
