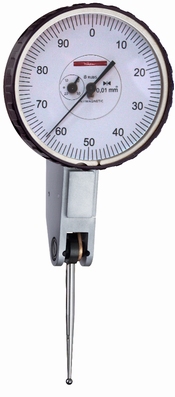

Mechanical dial gauge K40/4, 4.0/0.01/38 mm, A, Ø 38.2 mm

Mechanical dial gauge K40/4, 4.0/0.01/38 mm, A, Ø 38.2 mm
Mechanical dial gauge K40/4, 4.0/0.01/38 mm, A, Ø 38.2 mm
Mechanical dial gauge K40/4, 4.0/0.01/38 mm, A, Ø 38.2 mm
€ 241.00 *Prices are exclusive of VAT
Article code:  30086
  • reading: 0.01 mm
  • range: 4 mm
  • dial reading:
    * main pointer: 0-100 in steps of 1
    * small pointer: 0-4 in steps of 0.5

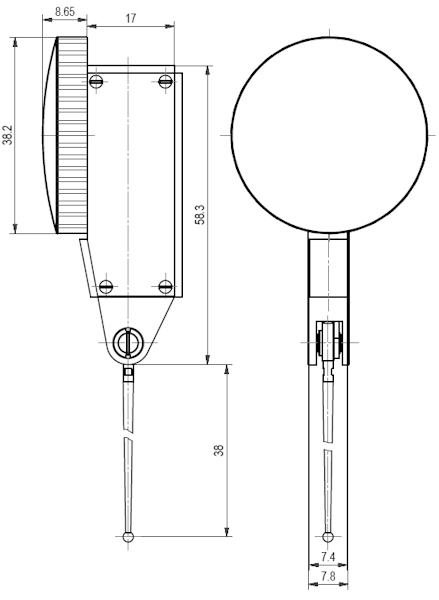

  • Ø bezel:  38.2 mm
  • contact point: M16, l=38 mm
  • swivelling range of contact point at 90° to the scale: 240°
  • metal casing, bezel made of polyamide
  • form of the casing according DIN 2270: A
  • rotating dial
  • protection category: IP40
  • dimensions: according to factory specification
  • accuracy: manufacturing standard
  • weight: 154 g
  • delivered in box with removable standard contact point, ball carbide Ø2 mm

Options and special fittings
  • calibration certificate
  • contact point l=38 mm, tungsten carbide ball Ø 0.4/1/2/3 mm, ruby ball Ø 2mm
