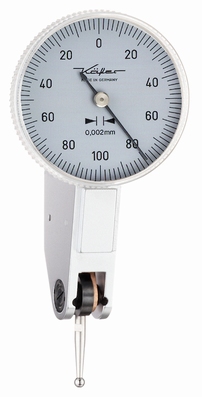

Mechanical dial gauge K46AD, 0.2/0.002/12.8 mm, A, Ø40 mm

IP53

Mechanical dial gauge K46AD, 0.2/0.002/12.8 mm, A, Ø40 mm
Mechanical dial gauge K46AD, 0.2/0.002/12.8 mm, A, Ø40 mm
Mechanical dial gauge K46AD, 0.2/0.002/12.8 mm, A, Ø40 mm
€ 117.00 *Prices are exclusive of VAT
Article code:  30074
  • reading: 0.002 mm
  • range: 0.2 mm
  • dial reading: 0-100-0
  • Ø bezel: 40 mm
  • contact point: M16, l=12.8 mm
  • swivelling range of contact point at 90° to the scale: 240°
  • metal casing, bezel made of polyamide
  • form of the casing according DIN 2270: A
  • rotating dial
  • protection category: IP53

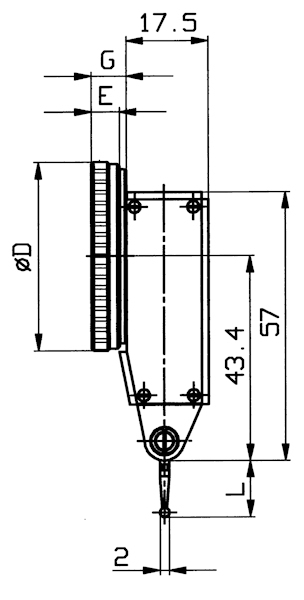

  • dimensions: according to DIN 2270
  • accuracy: according to DIN 2270
  • weight: 128 g
  • delivered in box with removable standard contact point, ball carbide Ø2 mm

Options and special fittings
  • calibration certificate
  • contact point l=12.8 mm, tungsten carbide ball Ø 0.4/1/2/3 mm, ruby ball Ø 2mm

Contact point, carbide ball, M1.6, l=12 mm, Ø=2.0 mm

Contact point, carbide ball, M1.6, l=12 mm, Ø=2.0 mm

€ 8.80
Contact point, carbide ball, M1.6, l=12 mm, Ø=1.0 mm

Contact point, carbide ball, M1.6, l=12 mm, Ø=1.0 mm

€ 13.70
Contact point, carbide ball, M1.6, l=12 mm, Ø=3.0 mm

Contact point, carbide ball, M1.6, l=12 mm, Ø=3.0 mm

€ 13.70
Contact point, ruby ball, M1.6, l=12 mm, Ø=1.0 mm

Contact point, ruby ball, M1.6, l=12 mm, Ø=1.0 mm

€ 16.80
Contact point, carbide ball, M1.6, l=12 mm, Ø=0.4 mm

Contact point, carbide ball, M1.6, l=12 mm, Ø=0.4 mm

€ 29.50
Stems with dovetail for K30~K48, Ø 8 mm h6

Stems with dovetail for K30~K48, Ø 8 mm h6

€ 9.30
Stems with dovetail for K30~K48, Ø 4 mm h6

Stems with dovetail for K30~K48, Ø 4 mm h6

€ 9.30
Centering holder FH8 for dial gage

Centering holder FH8 for dial gage

€ 32.20
Holder 1.0958, stem 6x12x80 mm, Ø4 H7, Ø8H7, dovetail clamp

Holder 1.0958, stem 6x12x80 mm, Ø4 H7, Ø8H7, dovetail clamp

€ 14.70
Holder FH90, stem Ø8x90 mm, Ø8mm H7, dovetail clamp

Holder FH90, stem Ø8x90 mm, Ø8mm H7, dovetail clamp

€ 17.30
