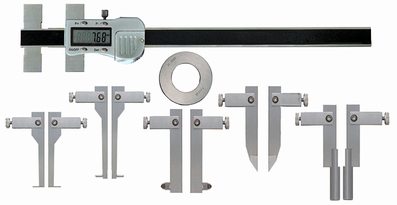

Digital universal caliper, 0~300 mm, 20/20 mm, 3V

with 5 pairs of measuring inserts and gauge

€ 488.00 € 315.00 *Prices are exclusive of VAT

Article code: 240.281

with 5 pairs of measuring inserts and gauge

measuring range capacity: 0~300 mm
resolution: 0.01 mm
electronic in metal casing (robust)

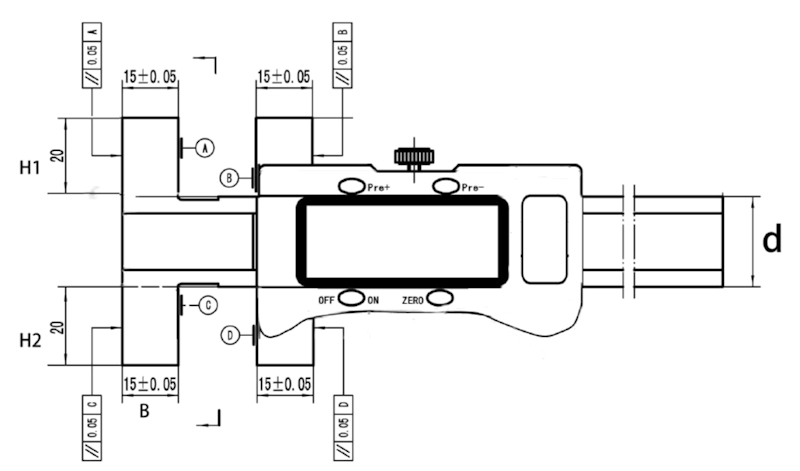

jaw length H1/H2: 20/20 mm
b / d : 15 / 17 mm
hardened stainless steel
big display LCD with buttons on/off, mm/inch, zero, preset
accuracy: 0.05 mm
locking screw
plastic packaging box
power supply: 1 battery 3V long period
battery's compartment closed by a screw (eliminates the risk of loss of the cover)
data output: RB5
wheight: 0,35 kg
delivered in plastic case with
2x 240.213 measuring insert for measuring grooves, flat, internal dimensions from 15 mm, measuring face 5 x 4 x 0.6 mm
2x 240.222 measuring insert for measuring grooves, round, internal measurement from 20 mm, measuring face 5 x ø 2 mm
2x 240.264 measuring insert for external measurement, with bevelled tip, measuring face 60 x 4 mm
2x 240.265 measuring insert with M 2.5 thread for comparator tip, length 60 mm
2x 240.267 measuring insert for wall thickness or hole diameter, length 70 mm
1x 313.030 adjustment ring 30 mm
battery and user manual
