Secotron 200 PLC Ømax 300 mm

Secotron 200 PLC Ømax 300 mm
Secotron 200 PLC Ømax 300 mm
Secotron 200 PLC Ømax 300 mm
Secotron 200 PLC Ømax 300 mm
Secotron 200 PLC Ømax 300 mm
Secotron 200 PLC Ømax 300 mm
Manufacturer:  REMET sas
Article code:  SECOTR.09
The SECTRON 300 is a 2/3-axes cutoff machine for high precision cuts, with longitudinal moving work table, precise cutting force control, cutting wheel height adjustment plus cross-feed table (accessoire).
"Y" cutting table with automatic motorized longitudinal travel and PLC control by touch screen display
increased travels on X & Y

Technical specification
  • maximum cutting wheel: Ø 200 mm
  • maximum cutting diameter: 60 mm

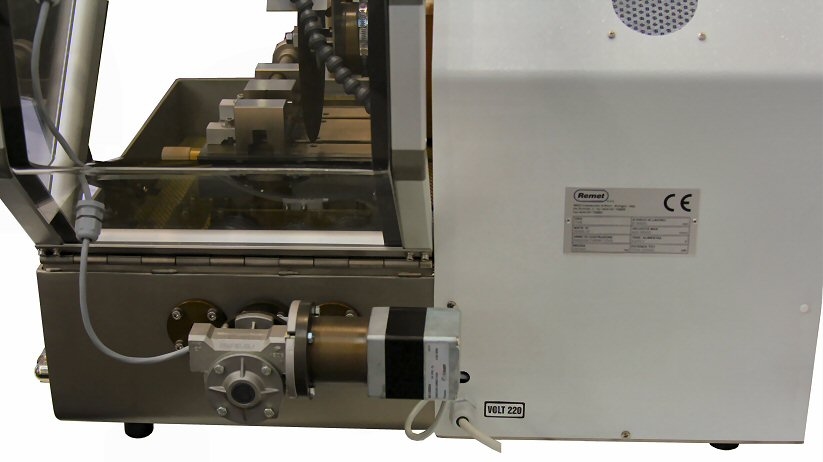

  • "Y" cutting table with motorized longitudinal travel moved by a brushless electric motor and gear reducer with constant torque not depending by the motor speed. Cutting force control, with automatic table feed rate control to adjust the speed to an appropriate value.
  • table longitudinal travel: 350 ± 0,01 mm
  • table speed: 0,1 ÷ 1 mm/sec
  • "Z" height adjustment of the cut-off wheel by a screw moved with an external handle: 200 ± 0,05 mm
  • parameters visualized in the LCD display:
    * cutoff wheel speed
    * table speed
    * length of the cut
    * direction of the table
    * cut-off wheel motor
    * current absorption
    * work and pause time during step cutting
    * coolant pump on or off.
  • motor power: 800 W
  • speed continuously adjustable: 0/3000 rpm
  • closed cycle cooling system
  • pump capacity: 11 l/min
  • tank capacity: 10 l
  • body and all major components are made from stainless steel.
  • internal components are steel-coated with nickel for protection against corrosion or chemical action
  • safety switch stops the machine when the guard is lifted
  • weight:
  • dimension (lxwxh):
  • power supply: 220 Vac

Standard delivery
  • 1 diamond wheel Ø 200 mm
  • 6 abrasive wheels Ø 200 mm,
  • oil for cut,
  • wrenches

Option & accessories
  • automatic motion of Z-axis (travel 50mm, prec. 0,05mm) with movement cobined with the motion of the table, SECOTR.07

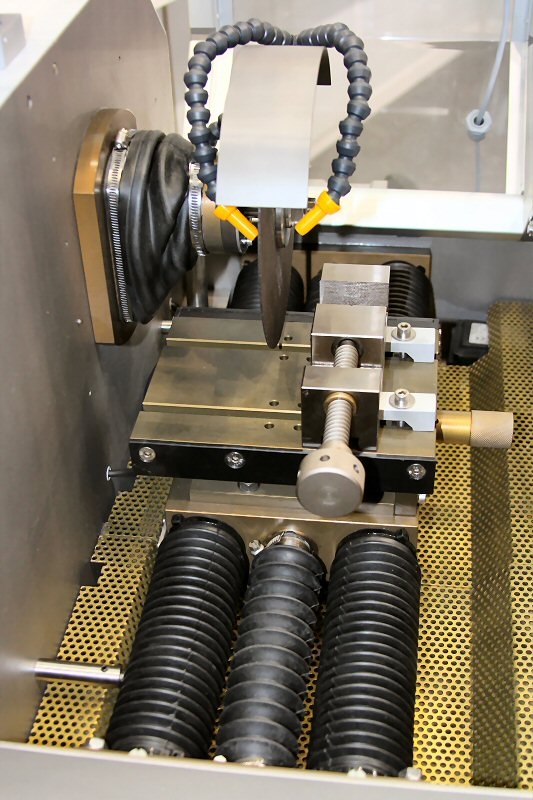

  • cross-feed table "X" with micrometric regulation, travel 50 mm, accuracy 0,005 mm, for precisius positioning of the sample respect to cut-off wheel and for cutting slices perfectly parallel,, with the position showed on LCD display, SECOTR.03
  • fast cam vice, opening 70mm, jaw H 25mm for Secotron (included V grove), TRA.134
  • double fast cam vice , opening 70 mm, jaw H 25mm (included V grove), TRA.135

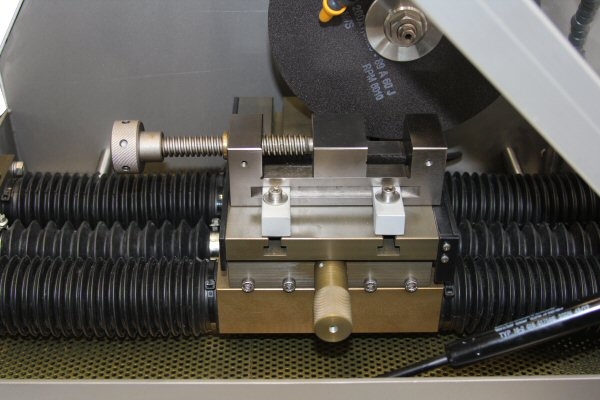

  • single precision vice, opening 60 mm, jaw H 25mm (included V grove), TRA.131
  • precision vice with side, spring loaded, sample holder, opening 60 mm, jaw H 25mm (included V grove), TRA.132
  • double precision vice with independent jaws, opening 60 mm, jaw H 25mm (included V grove), TRA.133
  • small vice type L with support base, TRA.124
  • lighting for working area (24V), TRA.011

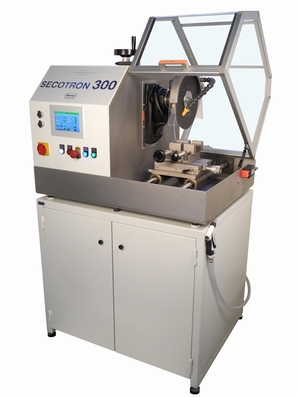

  • metallic cabinet base with storing area for cutting wheels and accessories, TRA.010
  • auxiliary coolant recirculating system with external inox tank (20lt) and electric pump, TRA.066
  • extension of turn number of SECOTRON 200 motor from 0-3000 rpm to 0-5000 rpm,TRA.153
