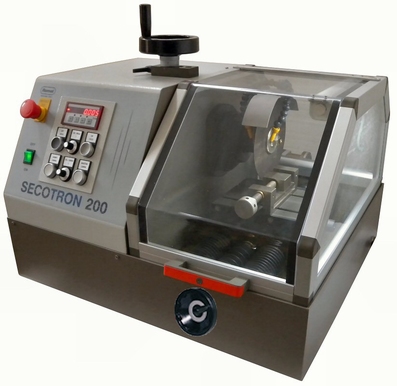

Secotron 200 manual Ømax 200 mm

Secotron 200 manual Ømax 200 mm
Manufacturer:  REMET sas
Article code:  SECOTR.05
The SECTRON 200 is a 2/3-axes cutoff machine for high precision cuts, with longitudinal moving work table, precise cutting force control, cutting wheel height adjustment plus cross-feed table (accessoire).
"Y" cutting table with manual longitudinal travel

Technical specification
  • maximum cutting wheel: Ø 200 mm
  • maximum cutting diameter: 60 mm
  • "Y" cutting table with manual longitudinal travel
  • table longitudinal travel: 250 mm
  • table speed: 0,1 ÷ 1 mm/sec
  • "Z" height adjustment of the cut-off wheel by a screw moved with an external handle: 50 ± 0,05 mm
  • motor power: 800 W
  • speed continuously adjustable: 0/3000 rpm
  • closed cycle cooling system
  • pump capacity: 11 l/min
  • tank capacity: 10 l
  • body and all major components are made from stainless steel.
  • internal components are steel-coated with nickel for protection against corrosion or chemical action
  • safety switch stops the machine when the guard is lifted
  • weight: 75 kg
  • dimension (lxwxh): 620x600x450 mm
  • power supply: 220 Vac

Standard delivery
  • 1 diamond wheel Ø 200 mm
  • 6 abrasive wheels Ø 200 mm,
  • oil for cut,
  • wrenches

Accessories
  • cross-feed table "X" with micrometric regulation, travel 50 mm, accuracy 0,005 mm, for precisius positioning of the sample respect to cut-off wheel and for cutting slices perfectly parallel,SECOTR.03
  • fast cam vice, opening 70mm, jaw H 25mm for Secotron (included V grove), TRA.134
  • double fast cam vice , opening 70 mm, jaw H 25mm (included V grove), TRA.135
  • single precision vice, opening 60 mm, jaw H 25mm (included V grove), TRA.131
  • precision vice with side, spring loaded, sample holder, opening 60 mm, jaw H 25mm (included V grove), TRA.132
  • double precision vice with independent jaws, opening 60 mm, jaw H 25mm (included V grove), TRA.133
  • small vice type L with support base, TRA.124
  • lighting for working area (24V), TRA.011
  • metallic cabinet base with storing area for cutting wheels and accessories, TRA.010
  • auxiliary coolant recirculating system with external inox tank (20lt) and electric pump, TRA.066
  • extension of turn number of SECOTRON 200 motor from 0-3000 rpm to 0-5000 rpm,TRA.153
