Secotron 200 automatic Ømax 200 mm

Secotron 200 automatic Ømax 200 mm
Secotron 200 automatic Ømax 200 mm
Secotron 200 automatic Ømax 200 mm
Secotron 200 automatic Ømax 200 mm
Secotron 200 automatic Ømax 200 mm
Manufacturer:  REMET sas
Article code:  SECOTR.06

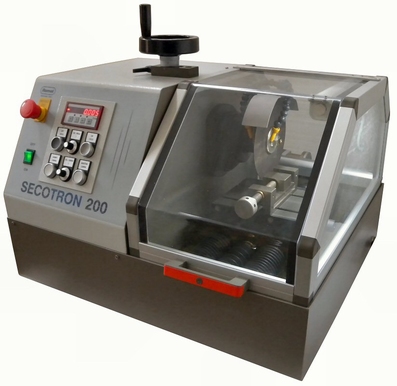

The SECTRON 200 is a 2/3-axes cutoff machine for high precision cuts, with longitudinal moving work table, precise cutting force control, cutting wheel height adjustment plus cross-feed table (accessoire).

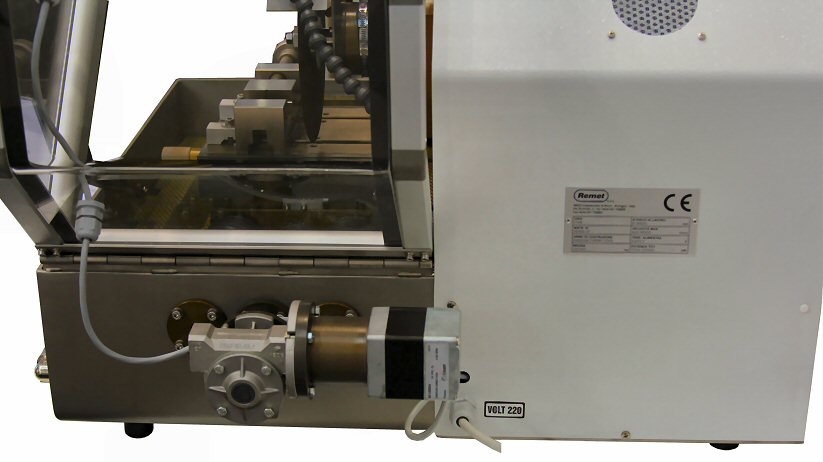

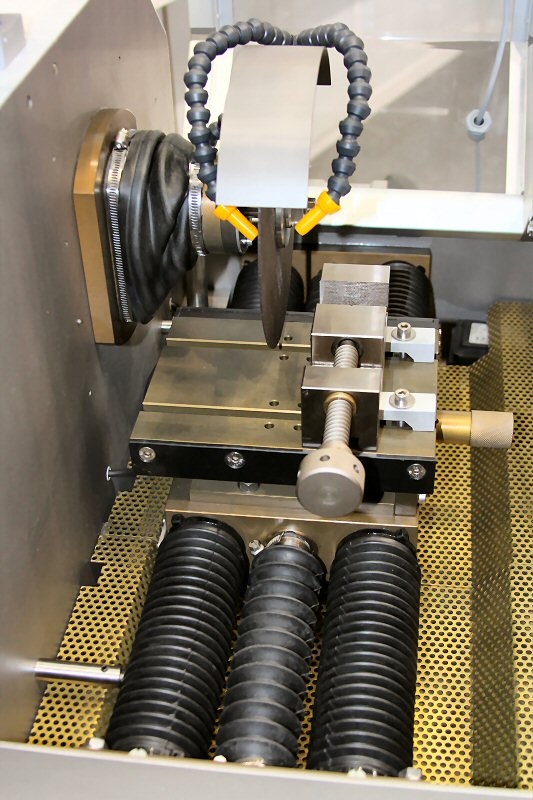

"Y" cutting table with motorized longitudinal travel

Technical specification
  • maximum cutting wheel: Ø 200 mm
  • maximum cutting diameter: 60 mm
  • "Y" cutting table with motorized longitudinal travel
  • table longitudinal travel: 250 mm
  • table speed: 0,1 ÷ 1 mm/sec
  • "Z" height adjustment of the cut-off wheel by a screw moved with an external handle: 50 ± 0,05 mm
  • motor power: 800 W
  • speed continuously adjustable: 0/3000 rpm
  • closed cycle cooling system
  • pump capacity: 11 l/min
  • tank capacity: 10 l
  • body and all major components are made from stainless steel.
  • internal components are steel-coated with nickel for protection against corrosion or chemical action
  • safety switch stops the machine when the guard is lifted
  • weight: 75 kg
  • dimension (lxwxh): 620x600x450 mm
  • power supply: 220 Vac

Standard delivery
  • 1 diamond wheel Ø 200 mm
  • 6 abrasive wheels Ø 200 mm,
  • oil for cut,
  • wrenches

Accessories
  • cross-feed table "X" with micrometric regulation, travel 50 mm, accuracy 0,005 mm, for precisius positioning of the sample respect to cut-off wheel and for cutting slices perfectly parallel,SECOTR.03

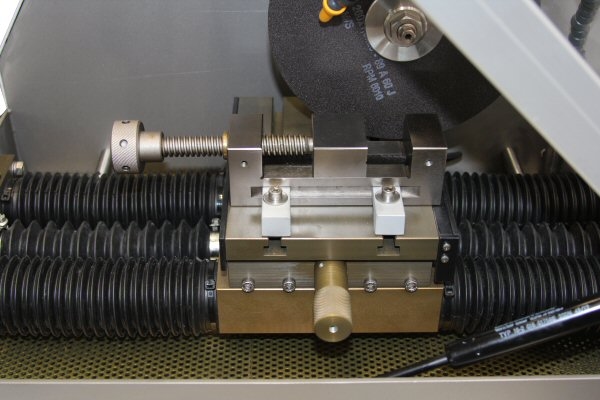

  • fast cam vice, opening 70mm, jaw H 25mm for Secotron (included V grove), TRA.134
  • double fast cam vice , opening 70 mm, jaw H 25mm (included V grove), TRA.135
  • single precision vice, opening 60 mm, jaw H 25mm (included V grove), TRA.131
  • precision vice with side, spring loaded, sample holder, opening 60 mm, jaw H 25mm (included V grove), TRA.132
  • double precision vice with independent jaws, opening 60 mm, jaw H 25mm (included V grove), TRA.133
  • small vice type L with support base, TRA.124
  • lighting for working area (24V), TRA.011
  • metallic cabinet base with storing area for cutting wheels and accessories, TRA.010
  • auxiliary coolant recirculating system with external inox tank (20lt) and electric pump, TRA.066
  • extension of turn number of SECOTRON 200 motor from 0-3000 rpm to 0-5000 rpm,TRA.153
