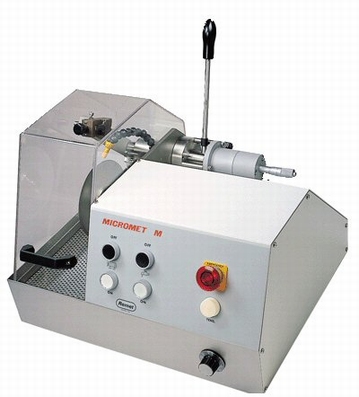

Micromet manual Ømax 200 mm

€ 6,558.00 *Prices are exclusive of VAT

Manufacturer: REMET sas
Article code: MICM.03

Metallographic cut-off machine manual with diamond wheel suitable for making precision cuts with minimal loss of material and without inducing alterations.

body and cutting area in stainless steel AISI 304.
the cooling liquid tank (4 liters) is placed inside the machine body.
transparent hood in shock resistant polycarbonat.
safety magnetic switch not allowing the machine to operate with open hood.
250 W DC cut-off wheel motor, 220V power supply
variable cut-off wheel speed (from 0 to 3000 r.p.m.).
the cut-off wheel motor torque is always the same also at very low speed.
micrometric sample positioning system (accuracy 0,01 mm) with cross-feed movement of the sample-holder arm (travel 25 mm).
manual sample advance system with counterweight for balancing the sample-holder arm.
the coolant recirculating system is composed by a submerged pump, two adjustable nozzles and a faucet.
the coolant tank is provided of a metallic swarf filter for clean cutting.
the pump works only when the protection hood is closed.
a stainless steel basket inside the coolant tank collects the cut pieces.

Technical specification

maximum cutting wheel: Ø 200 mm
maximum cutting diameter: 60 mm
maximum distance wheel axle/table: 150 mm
motor power: 0,2 kW
speed continuously adjustable: 0/3000 rpm
closed cycle cooling system
pump capacity: 8 l/min
tank capacity: 4 l
manual advancement system of the sample and external control.
micrometer for the moving of the arm with sample holder 0~25 mm.
body and all major components are made from stainless steel.
internal components are steel-coated with nickel for protection against corrosion or chemical action
safety switch stops the machine when the guard is lifted
weight: 36 kg
dimension (lxwxh): 500x460x380 mm
power supply: 220 Vac

Standard delivery

1 diamond wheel d. 100 x 1 x 20 mm
3 abrasive wheels d.125mm,
3 abrasive wheels d.150mm,
liter of cutting oil (for 40 liters of coolant)
wrenches and standard sample holder type F for cylindrical samples d. max 30 mm

Quantity

	Quantity	Article	Starting price	After that	Period	Total
	Quantity	Article	Unit price	Total
		Quantity:	(Gift)

	Subtotal



	Total
*Prices include VAT		*Prices are exclusive of VAT
Total weight

Article group

Login

Newsletter

Information

Micromet manual Ømax 200 mm

Digital micrometer 0-25 mm, 1 µm for Micromet M/SA

Couple of flanges Ø60 mm for cut-off wheel Ø200 mm

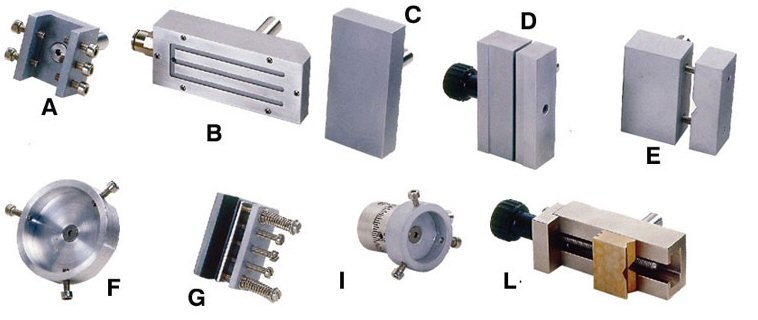

Sample holder type A for irregular shaped samples
