Micromet 'Evolution' semi-automatic Ømax 150 mm

€ 4,711.00 *Prices are exclusive of VAT

Manufacturer: REMET sas
Article code: MICESA.02

Quantity

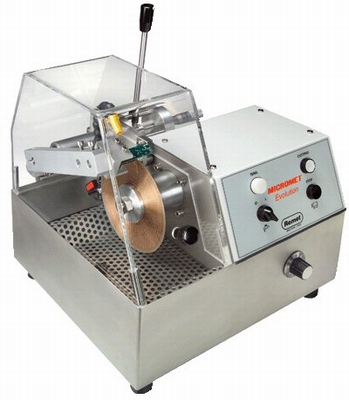

Metallographic cut-off machine manual with diamond wheel suitable for making precision cuts with minimal loss of material and without inducing alterations.

Semi-automatic feeding of the sample achieved by a counter weight system.

Technical specification

maximum cutting wheel: Ø 150 mm
maximum cutting diameter: 45 mm
motor power: 45 W
speed continuously adjustable: 0/2100 rpm
closed cycle cooling system
pump capacity: 8 l/min
tank capacity: 2,6 l
manual advancement system of the sample and external control.
micrometer for the moving of the arm with sample holder 0~25 mm.
body and all major components are made from stainless steel.
internal components are steel-coated with nickel for protection against corrosion or chemical action
safety switch stops the machine when the guard is lifted
weight: 15 kg
dimension (lxwxh): 310x300x300 mm
power supply: 220 Vac

Standard delivery

1 diamond wheel d. 100 x 1 x 20 mm
6 abrasive wheels d.125mm,
oil for cut,

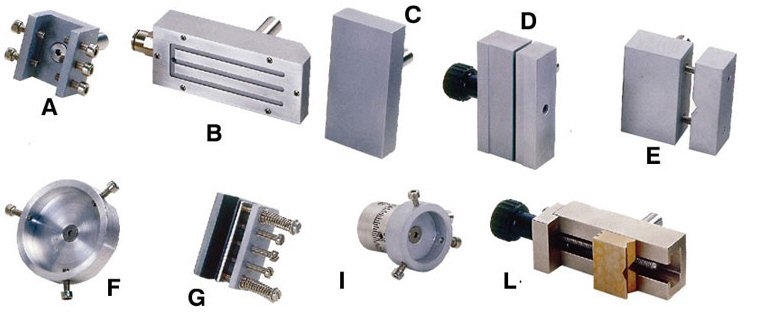

wrenches and standard sample holder type F for cylindrical samples d. max 30 mm
