Micromet 'Evolution' manueel Ømax 150 mm

€ 4,438.00 *Prices are exclusive of VAT

Manufacturer: REMET sas
Article code: MICEM.01

Quantity

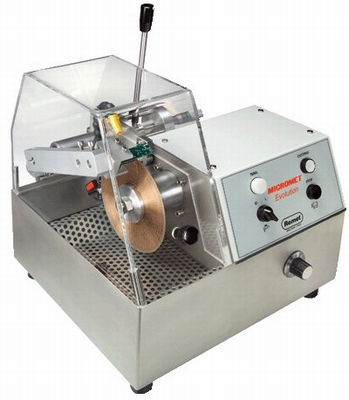

Metallographic cut-off machine manual with diamond wheel suitable for making precision cuts with minimal loss of material and without inducing alterations.

Manual feeding of the sample is achieved with external control lever.

Technical specification

maximum cutting wheel: Ø 150 mm
maximum cutting diameter: 45 mm
motor power: 45 W
speed continuously adjustable: 0/2100 rpm
closed cycle cooling system
pump capacity: 8 l/min
tank capacity: 2,6 l

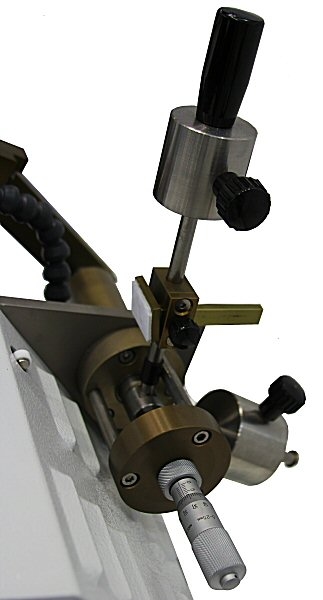

manual advancement system of the sample and external control.
micrometer for the moving of the arm with sample holder 0~25 mm.
body and all major components are made from stainless steel.
internal components are steel-coated with nickel for protection against corrosion or chemical action
safety switch stops the machine when the guard is lifted
weight: 15 kg
dimension (lxwxh): 310x300x300 mm
power supply: 220 Vac

Standard delivery

1 diamond wheel d. 100 x 1 x 20 mm
6 abrasive wheels d.125mm,
oil for cut,

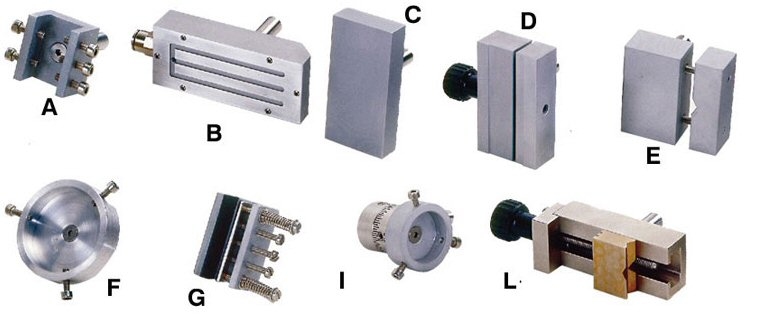

wrenches and standard sample holder type F for cylindrical samples d. max 30 mm
