Micromet automatic Ømax 150 mm

Micromet automatic Ømax 150 mm
Micromet automatic Ømax 150 mm
10,394.00 *Prices are exclusive of VAT
Manufacturer REMET sas
Article codeMICA.01

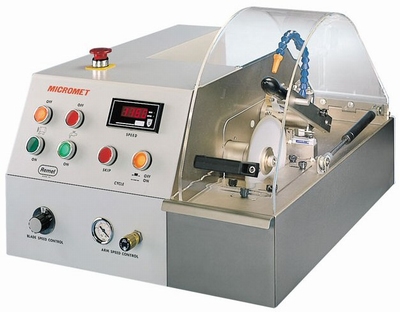

Metallographic cut-off machine manual with diamond wheel suitable for making precision cuts with minimal loss of material and without inducing alterations
Automatic: all cutting operations are controlled from the front panel. The feed rate of the sample controled by a sensitive electro-hydraulic system.

Technical specification
  • maximum cutting wheel: Ø 150 mm
  • maximum cutting diameter: 50 mm
  • maximum distance wheel axle/table: 150 mm
  • motor power:  0,2 kW
  • speed continuously adjustable: 0/3000 rpm
  • closed cycle cooling system
  • pump capacity: 8 l/min
  • tank capacity: 5,5 l
  • manual advancement system of the sample and external control.
  • micrometer for the moving of the arm with sample holder 0~25 mm.
  • body and all major components are made from stainless steel.
  • internal components are steel-coated with nickel for protection against corrosion or chemical action
  • safety switch stops the machine when the guard is lifted
  • weight: 40 kg
  • dimension (lxwxh): 500x600x420 mm
  • power supply: 220 Vac

Standard delivery
  • 1 diamond wheel d. 100 x 1 x 20 mm
  • 3 abrasive wheels d.125mm,
  • 3 abrasive wheels d.150mm,
  • oil for cut,

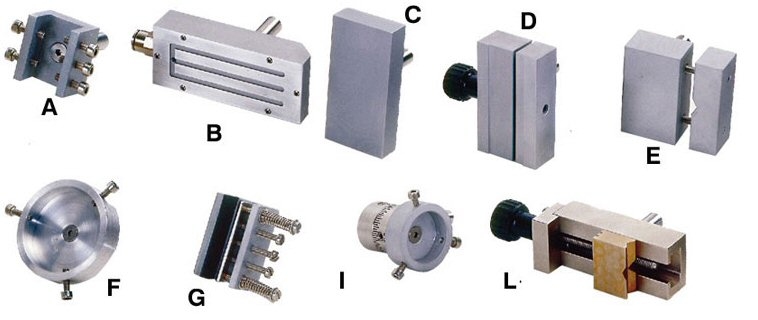

  • wrenches and standard sample holder type F for cylindrical samples d. max 30 mm
