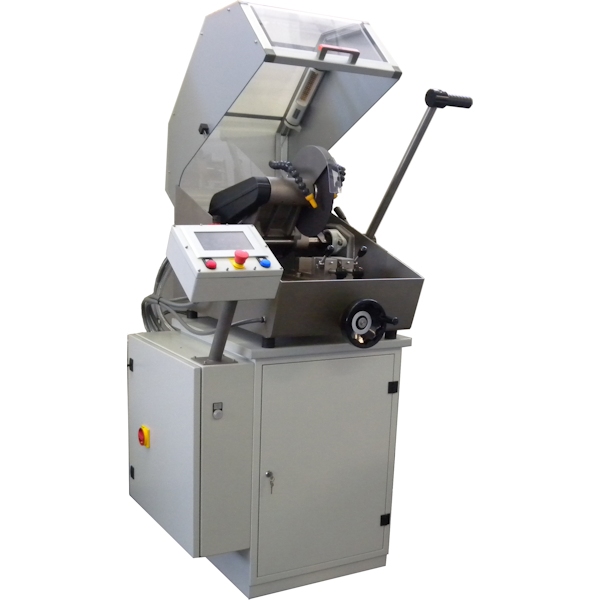

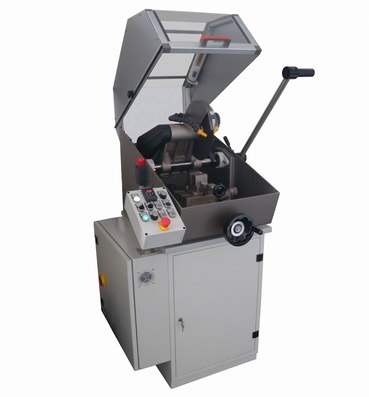

content="14/09/2022″/> Cut-off machine TR100-Inox, Ø300 mm

Cut-off machine TR100-Inox, Ø300 mm

Floor model

Cut-off machine TR100-Inox, Ø300 mm

Cut-off machine TR100-Inox, Ø300 mm

Cut-off machine TR100-Inox, Ø300 mm

€ 13,360.00 *Prices are exclusive of VAT

Manufacturer: REMET sas
Article code: TR100.04

0 star(s) in 0 review(s) Write a review

Metallographic cut-off machine TR100 inox with separate coolant recirculating system, floor model

Maximum respect of the metallographic rules (cold cut of all the metals with maximum roughness of Ra = 1 micron).

It allows to cut medium sized pieces of any shape and it easily solves the problems of the metallurgical laboratory and the problems of the heating treatments department.

the machine, realized with cast iron parts, is supported by a solid structure in stainless steel AISI 304
hood is in oven-painted steel with a large polycarbonate window.
to avoid corrosion problems all the cast iron parts are protected with electroless nickel plating.
the cast iron 250x250x10mm T-slotted work table accommodates every kind of clamping devices.
access ports on both sides of the machine accommodate extra-long samples.
the machine is supported by a strong metal cabinet with adjustable antivibrating supports.
the coolant recirculating system, integrated in the cabinet, is composed of a wheeled stainless steel tank, for an easy maintenance of the coolant, provided of a metallic swarf filter for clean cutting, that allows the electropump to work with clean coolant.
the stainless steel tank has a capacity of 40 liters.
the coolant recirculating system is completed by two adjustable nozzles and a faucet.
cutting motor with cast iron housing, supported by a bearing-mounted stainless steel bearing, completely hermetic.
cutting disc mounted on bearing with poly-V belt drive, maximizes cutting area
cutting disc surrounded by a fixed stainless steel housing for better resistance to splashing and corrosion.
the machine is delivered with an Ø 32 mm adapter ring (Ø25.4 mm possible, to be specified when ordering).
stainless steel strainer at the front of the cutting chamber for easy recovery of cutting residues.
machine supported by adjustable antivibrating supports.
fully complies to CE safety rules:
* low-voltage insulated control panel (24V)
* hood equipped with a safety magnetic switch which automatically shuts off the cutter when the hood is raised.

Technical specifications

cut-off wheel diameter: Ø 300 (option 350 mm)
maximum cutting diameter: Ø 100 mm (120 mm)
cut-off wheel speed: 2.500 rpm
* option: variable with speed display
distance between cut-off wheel spindle and work table: 300 mm
internal working space (under cut off wheel) WxDxH 560x380x120 mm
motor power: 3.0 kW (option for Ø350 mm: 3.7 kW)
pump motor power: 0,18 kW
coolant recirculating system: 25 lt (option 100 l)
weight: 175 kg
dimension (WxDxH) 900x1.030x1.530 mm
power supply: 380V 3 phase (220V 3 phase must be specified at the order)
* option: 220 V single phase with frequency converter

Standard delivery

2x cut-off wheels Ø300 mm for hard steels
2x cut-off wheels Ø 300 mm for general use
2x cut-off wheels Ø 300 mm for non ferrous metals
1x liter of cutting oil (for 40 liters of coolant)
instruction manual and wrenches.

Quantity

Option

TRA.026 Pre-arrangement for mounting a Ø350 mm cut-off wheel
TRA.095 Motor increase to 3,7 kW, suggested for a Ø350 mm cut-off wheel
TRA.126 Device to stop the downward cut-off wheel (height adjustable by gas spring shaft)
TRA.011 Lighting for working area (LED - 24V)
TRA.152 Laser line pointer for showing cutting line
TRA.156 Washout hose with metal gun for cut-off machine
TRA.007 Cross-feed T-slotted table, travel 136 mm, supporting clamping devices 250x180mm (precision 0,05mm), nickel platted.
TRA.008 Pre-arrangement for moving the cross-feed table TRA.007 by an outside hand-wheel.
TRA.143 Slotted table 400x350mm divided in 2 parts with central space, nickel platted.
TRA.070 Longitudinal feed work table 250x280 mm travel 250 mm, nickel platted, only with TRA.010
TRA.033 Automatic feeding of the longitudinal feed work table TRA.070
TRA.034 Automatic cut-off wheel advancement system, only with TRA.010
TRA.154 Automatic control by PLC with color touch screen foor model with automatic table TRA.070+TRA.033 and/or TRA.034
TRA.012 Fume extractor (connected to the access port) - 220V

Accessories

All vice or fixing device are protected by electroless Nickel plating protection (Niploy)

TRA.021 Precision vice without sample holder, opening 105mm
TRA.022 Precision vice with sample holder, opening 105mm
TRA.023 Double precision vice with independent sample holders, opening 105mm
TRA.110 Quick cam-activated vice, electroless nichel plated, opening 120 mm
TRA.111 Quick cam-activated vice with sample holder, electroless nichel plated, opening 120mm
TRA.112 Double quick cam-activated vice, electroless nichel plated, opening 120mm
TRA.024 Self-centering vice opening 110 mm, electroless nickel plated
TRA.004 Jaw with V groove
TRA.025 T-slot clamping set for large specimens
TRA.006 Large sections clamping system
TRA.009 rotation graduated support 360° of a precision vice for angular cuts.
TRA.010 Cabinet base in painted steel with storing area for cutting wheels and accessories.
TRA.142 Painted steel support frame with pump and stainless steel tank on 4 wheels (100lt)
TRA.147 Painted steel support frame with pump and PVC tank on 4 wheels (100lt)

Precision vice without sample holder, opening 105mm

Precision vice without sample holder, opening 105mm

Precision vice with sample holder, opening 105mm

Precision vice with sample holder, opening 105mm

Double precision vice, opening 105mm

Double precision vice, opening 105mm

Quick cam-activated vice left, opening 120 mm

Quick cam-activated vice left, opening 120 mm

Quick cam-activated vice right, opening 120 mm

Quick cam-activated vice right, opening 120 mm

Quick cam-activated vice & sample holder, opening 120mm

Quick cam-activated vice & sample holder, opening 120mm

Double quick cam-activated vice, opening 120 mm

Double quick cam-activated vice, opening 120 mm

Self-centering vice opening 110 mm

Self-centering vice opening 110 mm

Jaw with V grove

T-slot clamping set for large specimens

T-slot clamping set for large specimens

Large sections clamping system

Large sections clamping system

360° rotation graduated support of a vice for angular cuts

360° rotation graduated support of a vice for angular cuts

Cross-feed T-slotted table, travel 136 mm

Cross-feed T-slotted table, travel 136 mm

Prearrangement for moving the TRA.007 with outside handwheel

Prearrangement for moving the TRA.007 with outside handwheel

Slotted table 400x350mm divided in 2 parts

Cabinet base in painted steel with storing area

Painted steel support frame, pump and stainless steel tank

Painted steel support frame, pump and stainless steel tank

Painted steel support frame with pump and PVC tank

Painted steel support frame with pump and PVC tank

Pre-arrangement for mounting a Ø350 mm cut-off wheel

Motor increase to 3,7 kW suggested for Ø350 mm cut-off wheeL

Lighting for working area (LED - 24V)

Lighting for working area (LED - 24V)

Fume extractor (connected to the access port) - 220V

Special sample holder for cutting bearing on Micomet M-SA-Au

Device to stop the downward cut-off wheel

Laser line pointer for showing cutting line

Laser line pointer for showing cutting line

Laser line pointer for showing cutting line

Laser line pointer for showing cutting line
