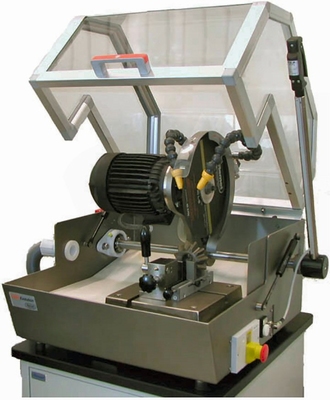

Cut-off machine 'Evolution' TR80 E, Ø250 mm

€ 6,860.00 *Prices are exclusive of VAT

Manufacturer: REMET sas
Article code: TR80.05

Economical manual table saw for cutting parts of all hardnesses up to a diameter of 80 mm.

Very compact and robust table saw with a very good price / quality ratio, the Evolution TR 80 E has been developed to meet the demand of users for simple and economical machines for normal use: reservoir integrated into the frame of the machine, simplified control, ...

It makes it possible to respect metallographic rules as much as possible (cold cutting of all metals with a maximum roughness of Ra = 1 µm) for medium sized components of any shape. It allows to easily solve the problems of the metallurgical laboratory and the heat treatment department.

rigid base structure & AISI 304 stainless steel housing.
access opening on the right side for cutting long workpieces.
built-in 18 liter reservoir for coolant / cutting fluid with drain valve at the rear of the machine.
cast iron work table with T-slots of 250x250 mm, protected against corrosion by chemical nickel plating. Suitable for all types of clamping devices.
internal workspace (under the grinding wheel) wxdxh 480x360x120 mm.
cutting motor with cast iron housing, supported by a stainless steel lever, completely sealed.
cutting disc attached directly to the motor shaft and surrounded by a fixed stainless steel housing for better resistance to projections and corrosion.
motor shaft diameter Ø 15 mm. The machine is delivered with a Ø 25.4 or 32 mm adapter ring (to be specified when ordering).
sprinkler system with electric motor pump for recycling the coolant, two adjustable nozzles and a flow valve.
stainless steel grid on the front of the cutting chamber for easy collection of cuttings.
transparent polycarbonate hood with a sturdy anodized aluminum frame for full visibility of the cutting area.
outlet on the left side for possible connection to a steam extractor.
cut-off machine mounted on adjustable anti-vibration supports.
very easy to use cut-off machine thanks to the on-off switch integrated in the movement lever with simultaneous control of the cutting motor and the sprinkler.
fully compliant with CE safety regulations:
* switch supplied with low voltage (24V)
* Hood mounted safety lock prevents the hood from opening when the cutting disc is rotating.
* access opening (s) automatically closed if not used.

Technical specifications

maximum diameter of the cutting disc: 250 mm.
maximum cutting diameter (one clamping): 80 mm.
disc rotation speed: 2,800 rpm.
maximum distance between the axis of the disc and the work table: 230 mm.
cutting motor power: 1.3 kW / 1.75 hp
pump motor power: 0.18 kW
capacity of the coolant tank: 18 liters.
weight: 80 kg.
dimensions: (wxdxh) 625x730x550 mm.
power supply: 380~400 V three-phase, neutral and earth (if specified in the order, 220~240 V three-phase).

Quantity

Scope of supply

2 cutting discs Ø 250 mm for hard steels.
2 cutting discs Ø 250 mm for general use.
2 Ø 250 mm cutting discs for non-ferrous materials.
1 liter of coolant additive (suitable for the preparation of 40 liters).
1 Ø20 / 32 mm adapter ring (or if specified when ordering Ø20 / 25.4 mm).
user manual and certificate of conformity.

Additional options and accessories

TRA.001 precision vice without sample holder, maximum opening 80 mm
TRA.002 precision vice with sample holder, maximum opening 80 mm
TRA.003 double precision vice with independent sample support, maximum opening 80 mm
TRA.107 quick-release vice, nickel-plated, without sample holder, maximum opening 90 mm
TRA.108 quick-release vice, nickel-plated, with sample holder, maximum opening 90 mm
TRA.109 double quick-release vice, nickel-plated, with independent sample holder, maximum opening 90 mm
TRA.024 self-centering clamping vice, max opening 110 mm, nickel-plated
TRA.004 jaw with V-groove
TRA.020 angle bracket for clamping large workpieces
TRA.006 fastening system for very large parts
TRA.007 table 250x250 mm with transverse displacement T-slot, max stroke 136 mm.
TRA.008 preconfiguration option for controlling the TRA.007 transverse displacement outside the saw.
TRA.010 metal base cabinet with storage area for discs and accessories.
TRA.011 low voltage 24 V lighting of the cutting area
TRA.173 mMicro sof fume extractor (connects to the extraction socket)
TRA.126 adjustable end stop of the disc carrier shaft.
TRA.138 frequency converter for single-phase 220 V power supply.
TRA.126 adjustable end stop of the disc shaft.
TRA.155 manual cleaning system with flexible hose and metal gun
TRA.152 laser line pointer for displaying the cutting line
TRA.181 access door on the left for cutting very long parts (identical to the standard access on the right)
