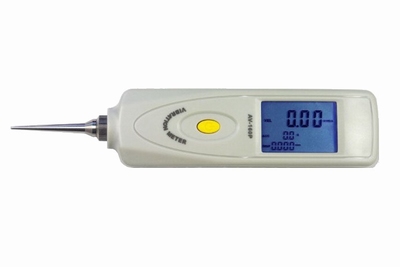

Digital vibration meter, 1 axle, AV-160P

€ 287.00 *Prices are exclusive of VAT

Article code: AV-160P

The vibration tester applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned. Designed for on-site measuring various mechanical vibration, for quality control, running time and prior equipment maintenance data. Selection of high-performance accelerometers to achieve accurate, replicable measurement It has a bearing condition measurement function.

in accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines
specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes
individual high quality accelerometer for accurate and repeatable measurements
wide frequency range (10Hz~10kHz) in acceleration mode
bearing condition monitoring function.
use USB data output with connection PC
provide Bluetooth data output 10~100m

Product Parameters

transducer: piezoelectric accelerometer
accuracy: ± 10%+2 digits
measurement range
* displacement: 0,001~3,000 mm equivalent peak-peak
* velocity: 0,01~300,0 mm/s true RMS
* acceleration: 0,1~300,0 m/s² equivalent peak / 0.0-40g
frequency range
* displacement: 10Hz~1kHz
* velocity:10Hz~1kHz
* acceleration: 10Hz~10kHz.
display: 4 digit LCD backlit
metric/imperial conversion
max.value hold and low battery indication
operating conditions: temperature : 0-50°C, humidity: below 95% RH
digital output: 1x jack for RS235/USB (according cable)
power supply: lithium battery, adapter 240 Vac / 5 Vdc
power off: manual off at any time or auto
size (hxwxd): 202x43x23 mm
weight: unit 130g

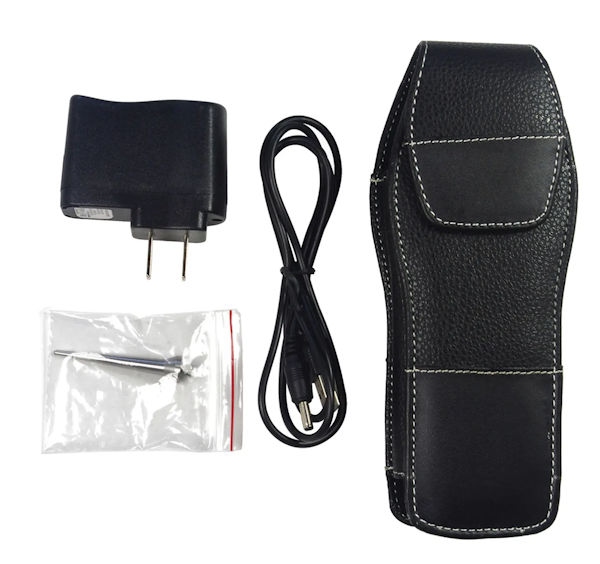

Standard delivery

main unit
probe (cone) Øxh: 1,90/5,80x46,30 mm, M5
adapter 240 Vac / 5 Vdc with cabel
leather case with clips belt
operation manual + factory calibration certificate

Option & accessories

USB communication cable
