Hydrometer BL H 70

%HR wood

Hydrometer BL H 70
Hydrometer BL H 70
Hydrometer BL H 70
407.00 *Prices are exclusive of VAT
Article code30011250

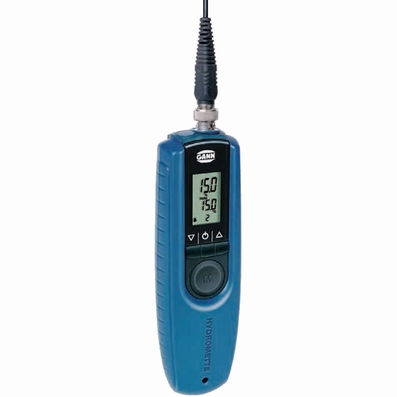

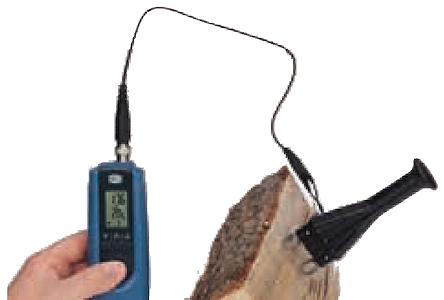

  • the BL HT 70 unit is an electronic wood moisture and temperature meter that uses the resistance principle of measurement for precisely measuring sawn timber (up to 180 mm in thickness), chipboards, veneers, wood chips and similar bulk materials.
  • the unit is used for individual measurements before and after processing.
  • additionally, the adjustable wood temperature compensation allows for optimisation of the measured value.
  • particularly suited for saw mills, parquet factories, and wood-processing companies.
Measuring range
  • wood moisture:
    5~70% (dry mass)
    3.1~41% water content
  • temperature: -50~+250° C using ET 10 BL
Characteristics
  • display: 3-line LCD (humidity, temperature, correction), resolution 0.1%
  • response time: <2 s
  • 7-level wood species correction (more than 300 types)
  • wood temperature compensation is done manually or automatically in the range from -10 to +50 °C through the unit temperature or by means of an external temperature sensor
  • storage of the 10 most recent measured values
  • optional: 5 customer-specific characteristic curves may be programmed in factory
  • MIN MAX and HOLD functions for measured values
  • indication of the ambient temperature / temperature of the device.
  • automatic device shutdown
  • operating conditions: 0~+50° C continuously, -10~+60° C short-term
  • long-term storage conditions: +5~+40° C
  • power supply: 9 V battery or rechargeable battery (optional accessories)
  • dimensions: 180 [L] x 50 [W] x 30 mm [H],
  • weight approx. 160g
Scope of delivery
  • BL H 40 electronic humidity meter
  • plastic case
  • user manual
Accessory
  • push-in electrode M 20 (31003300)
  • push-in electrode M 19 (31003400)
  • hammer-in electrode M 18 (31003500)
  • electrode tips without insulation: 16 mm (31004610), 23 mm (31004620), 40 mm (31004640) or 60 mm (31004660)
  • electrode tips with insulation for M18: 45 mm (31004550) or 60 mm (31004500)
  • 1 m connection cable for MK8 electrode (31006210)
  • pyrometric probe for temperature measurement ET-100 (31013165)
  • infrared pyrometric probe for surface IR 40 BL (31003150)
