Hydrometer BL H 40

%HR wood

€ 238.00 *Prices are exclusive of VAT

Article code: 30011100

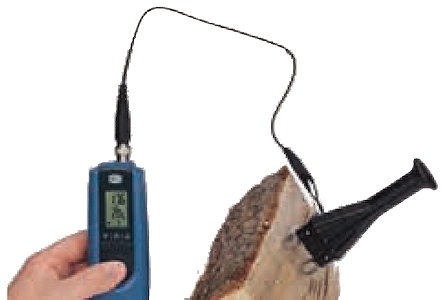

the BL H 40 is an electronic moisture meter that uses the resistance measurement principle to measure precisely sawn wood (up to 180 mm thick), particle board and veneer.
BL H 40 is used for individual measurements before and after treatment.
in addition, the adjustable wood temperature compensation optimizes the measured value.
BL H 40 is particularly suitable for use in carpentry workshops, for parquet layers or paint contractors.

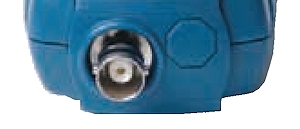

various resistance-based electrodes can be connected to the BNC socket
temperature measurement probes can also be connected

Measuring range

Characteristics

display: 3-line LCD (humidity, temperature, correction), resolution 0.1%
response time: <2 s
correction of wood species according to 7 levels (more than 300 species)
option: 2 customer-specific characteristic curves can be programmed at the factory
compensation of the wood temperature is done manually or automatically in the range of -10 to +40 ° C by means of the probe in the BL H 40
MIN MAX and HOLD functions for measured values
indication of the ambient temperature / temperature of the device.
automatic device shutdown
operating conditions: 0~+50° C continuously, -10~+60° C short-term
long-term storage conditions: +5~+40° C
power supply: 9 V battery or rechargeable battery (optional accessories)
dimensions: 180 [L] x 50 [W] x 30 mm [H],
weight approx. 160g

Quantity

Scope of delivery

Accessory

push-in electrode M 20 (31003300)
push-in electrode M 19 (31003400)
hammer-in electrode M 18 (31003500)
electrode tips without insulation: 16 mm (31004610), 23 mm (31004620), 40 mm (31004640) or 60 mm (31004660)
electrode tips with insulation for M18: 45 mm (31004550) or 60 mm (31004500)
1 m connection cable for MK8 electrode (31006210)
pyrometric probe for temperature measurement ET-100 (31013165)
infrared pyrometric probe for surface IR 40 BL (31003150)
