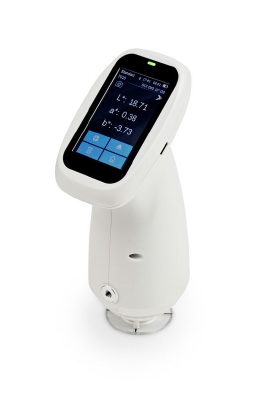

Colour spectrometer JCS 100

MAV: Ø 8 mm / Ø 10 mm, SAV: Ø 4 mm / Ø 5 mm, LAV: 1 x 3 mm

€ 3,300.00 € 2,800.00 *Prices are exclusive of VAT

Manufacturer: SAUTER GmbH
Article code: JCS 100

0 star(s) in 0 review(s) Write a review

Accurate color spectrometer for determining wavelengths and color spectra

determines many chromatic parameters
standard viewing angle to choose from: 2 or 10 degrees, several lighting modes, several color spaces
geometric optical configuration D/8, that is to say that the angle at which the light reflected by the sample is captured is 8 degrees. This configuration is suitable for a wide variety of materials and surfaces
measurement method: the dual optical path system simultaneously records the SCI and SCE spectrum of a sample. This combination allows precise and complete color characterization, with or without taking gloss into account.
with LED light source for fluorescence measurements
the integrated white plate as a reference is protected against dirt and guarantees measurement accuracy
portable, sturdy, stable and dustproof design
full spectrum with long life and low power consumption

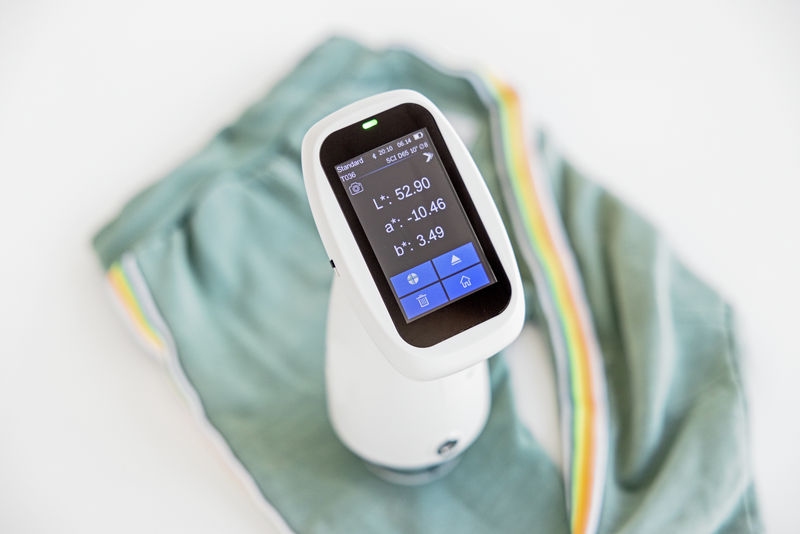

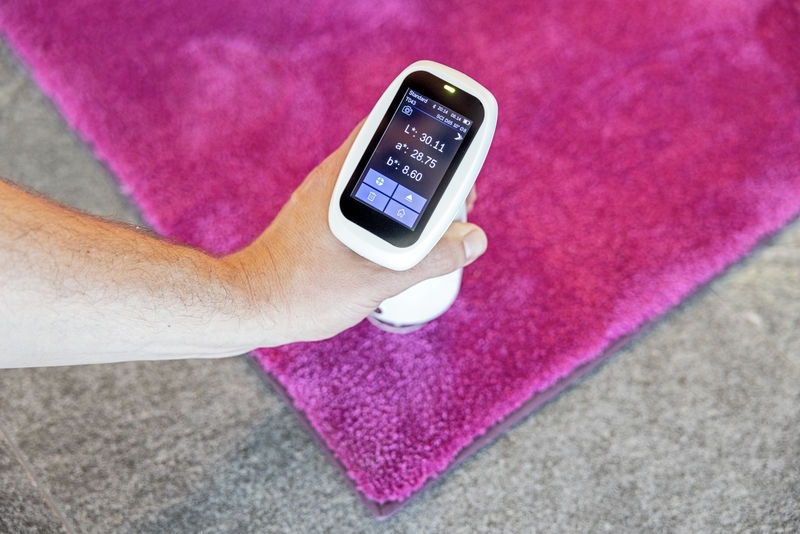

developed for color quality control in the textile, printing, ceramic, food and cosmetic industries
ideal for laboratory and industrial use:
* serial USB port
* fast and accurate measurement of SCI and SCE spectrum, simultaneously in just one second
* color screen with simple touch operation
offers different calibration algorithms
supports multiple national and international standards and parameters, including spectral reflectance, WI (ASTM E313, CIE/ISO, AATCC and Hunter), YI (ASTM 01925, ASTM 313), color spectrum index of Mt, fastness of color to the touch, color fastness, thickness, coverage rate, color classification 555 as well as Munsell (C2)

Technical characteristics

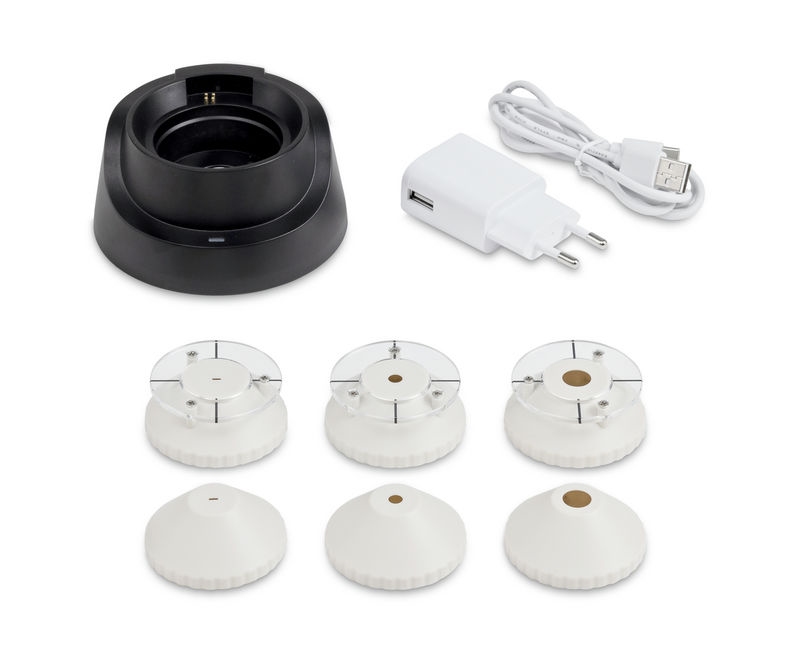

measuring diaphragm:
* MAV: Ø 8 mm / Ø 10 mm
* SAV: Ø 4 mm / Ø 5 mm
* LAV: 1 x 3 mm
viewing angle: 2°, 10°
optical geometry: D/8 (diffuse illumination, 8 degree viewing angle), SCI/SCE mode (specular component included/specular component excluded), conforms to CIE No. 15, GB/T 3978, GB 2893, GB /T 18833, ISO7724-1, ASTM E1164, DIN5033 part7
color space: CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, ßxy, DIN Lab99
color difference formula: ?E*ab, ?E*uv, ?E*94, ?E*cmc(2:1), ?E*cmc(1:1), ?E*00, DIN?E99, ?E(Hunter)
colorimetric index Spectral reflectance: WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), metamerism index Mt, color fastness, color fastness, color intensity, opacity, 555 tone classification, Munsell (C/2) (mobile APP implementation)

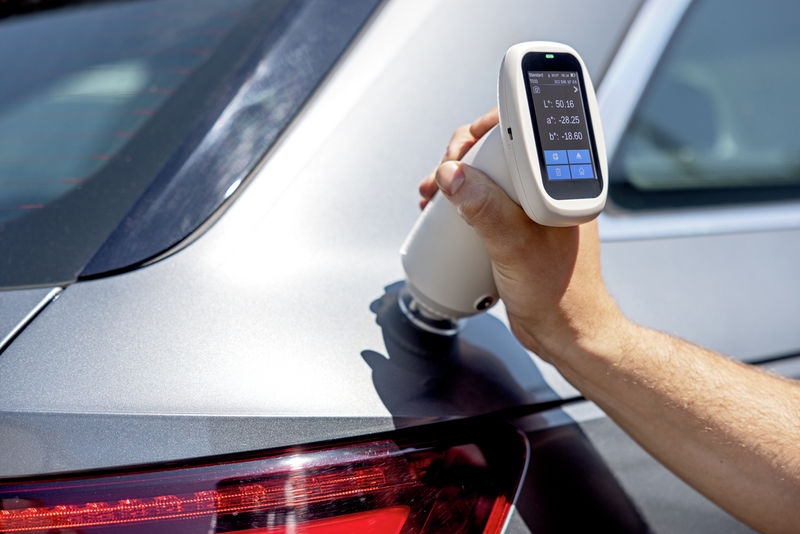

dual beam splitting CMOS sensor; used for quality control of color differences in plastics processing, paints and inks, textile and clothing printing and dyeing, printing, ceramic industry and other industries for sample measurement fluorescents.
light source: combined full-spectrum LED, UV light source
wavelength range: 400~700 nm
lighting means: D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F 9,F10(TPL5),F11(TL84 ),F12(TL83/U30),U35,NBF,ID50,ID65
size of integrating spheres: Ø 40 mm
display: spectrogram/values, color sample values, color difference values/graph, PASS/FAIL result, color simulation, color shift
measuring time: about 1s
reproducibility:
* chromaticity: MAV/SCI, within ?E*ab 0.02 (after preheating and correction, the average value of the panel was measured 30 times at an interval of 5s)
* spectral reflectance: MAV/SCI, standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)
error: MAV/SCI, in ?E*from 0.2 (average for 12 BCRA Series II paint tiles)
display accuracy: 0.01
measured reflection area: 0-200%
reflection resolution: 0.01%
measuring mode: single measurement, average measurement (2-99 times)
location method: stabilizer position + camera positioning
white calibration: automatic non-contact calibration
battery: lithium battery, 3.7 V, 5000 mAh, 8000 cycles in 8 hours
fixing hole: M5 x 5 mm pitch 0.8 mm
bulb life: more than 1.2 million measurements over 10 years
screen: 2.8-inch TFT touchscreen in true color, capacitive
interface: USB, Bluetooth®5.0
data memory: standard 500 pieces, sample 10,000 pieces (a file can contain SCI/SCE); PC mass memory

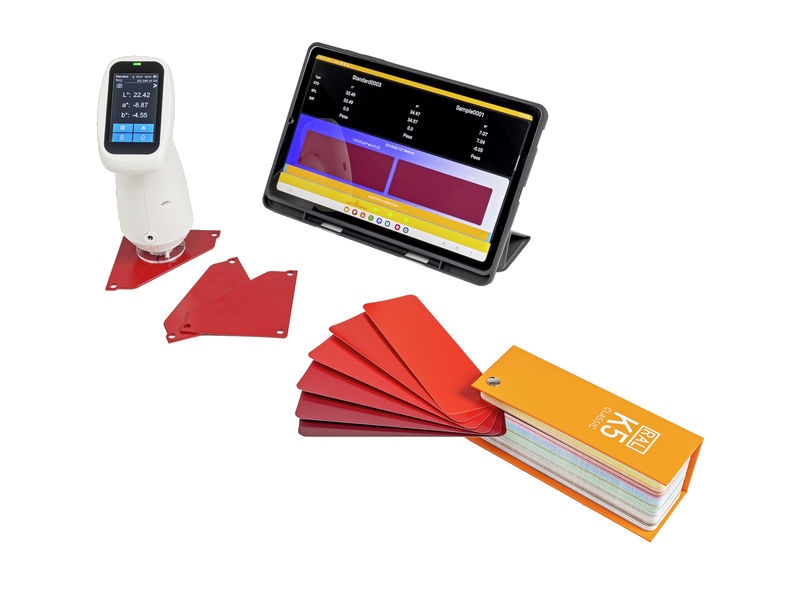

software support: Android, IOS, Windows, WeChat
language: English, Chinese
operating environment: 0~40°C, 0~85%RH (no condensation), altitude < 2000m
storage environment -20~50°C, 0~85%RH (non-condensing)
total dimensions L×D×H 188×94×68 mm
net weight approx. 0.270 kg
